Industry pain points and demands

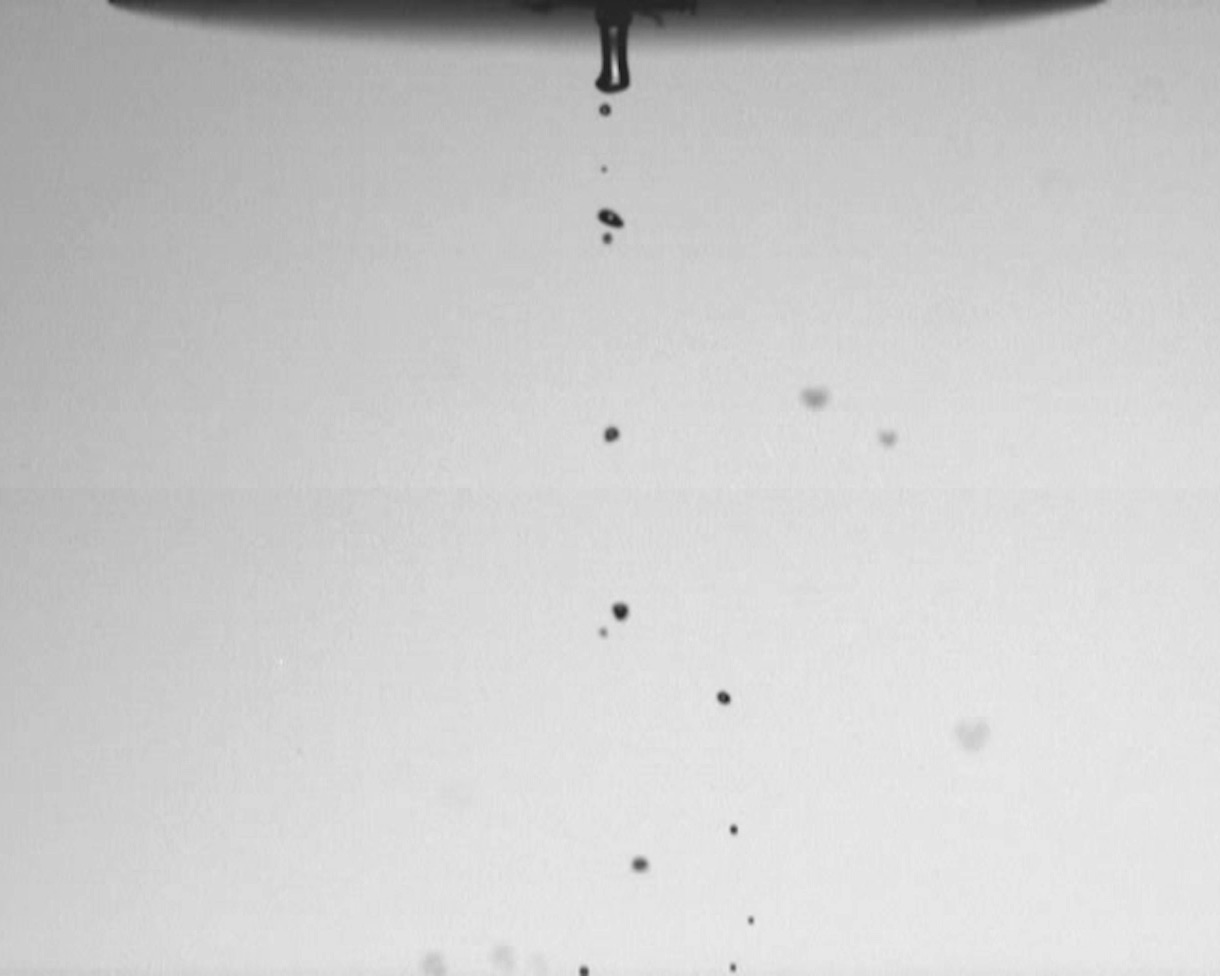

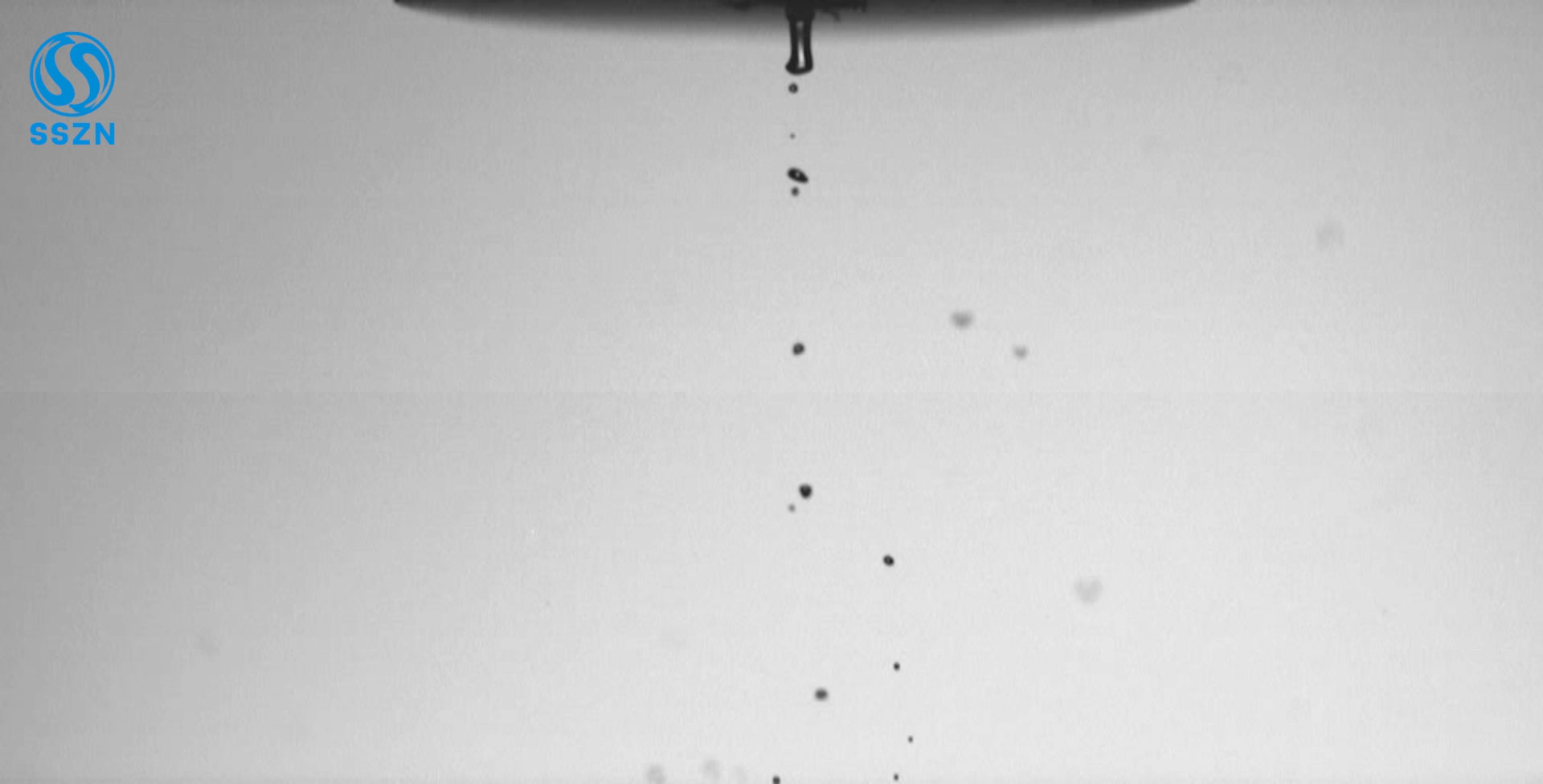

Fluidic flow refers to the liquid from the nozzle or orifice ejection, out of the solid boundary constraints, in the liquid or gas for diffusion flow. When the fluid is injected into the static environment, there are discontinuous planes with different speeds between it and the surrounding static fluid. The discontinuous plane will be inevitably interfered with, thus losing stability and producing vortices. The surrounding fluid enrolls into the jet, and constantly moves, deforms and divides into turbulence. Since the liquid flowing at high speed cannot be observed by conventional means, a high-speed camera is needed to record the morphometric changes of the fluid when it is shot into the static environment.
Video display
Advantages & characteristics
01
The camera has a resolution of 1280 x 256 and a frame rate of 40,00fps
Camera Selection
specification | |||
Model number | TYPE | SH3-108 | |
Maximum resolution | Full Resolution | 1280 x 1024 | |
Full shot speed | Full Frame Rate | 8000fps | |
Maximum shooting speed | Maximum Frame Rate | 550000fp | |
Minimum exposure time | Minimum Exposure Time | 1μs, customized for 100 NS | |
Pixel size | Pixel Size | 14.6 mu m | |
Standard memory | Standard RAM | 16G, 32G, and 64G are optional | |
Extended memory | Extended Memor | 1T, 2T, and 4T are optional | |
Dynamic range | Dynamic Range | 60dB | |
Analog gain | Analog Gain | X 2, x 4, x 8 | |
Bit depth | Bit Resolution | 8bit/10bit/12bit | |
Shutter type | Shutte Mode | Global shutter | |
color | Color | Monochrome (M)/Color (C) | |
Window acquisition | ROI | support | |
Lens bayonet | Lens Mount | Port E is used to switch to ports F, C, and EF | |
Data interface | Data Interface | Ten Gigabit Ethernet, adaptive Gigabit Ethernet | |
sensitivity | Sensitivity | ISO56000(M); ISO21000(C) | |
Fan Control | Fan Control | Supports on/off, adaptive speed based on temperature | |
Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
Video Signal Output | Video Signal Output | Ethernet | |
Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
Trigger Mode | Trigger Mode | Manual, IO, Image | |
External Signal | External Signal | Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIG Output: trigger, synchronization signal, ready signal | |
Power Supply | Power Supply | DC24V | |
Dimensions (excluding lens) | Dimensions (excluding lens) | 90D×110W×110H,不含凸起部分 | |
Weight | Weight | <1.6kg | |
Power Consumption | Power Consumption | <30W | |
Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one |
