Betel Nut Height Detection with SinceVision 3D Laser Profiler
Industry pain points and demands
Height consistency of betel nuts is a critical factor in automated food packaging. Variations in height can cause misalignment during packing, reduce sealing effectiveness, and compromise the product's appearance. Conventional inspection methods often lack the precision and speed needed to meet high-volume production demands in the food and packaging industry.
Physical Picture or Imaging Effect Picture

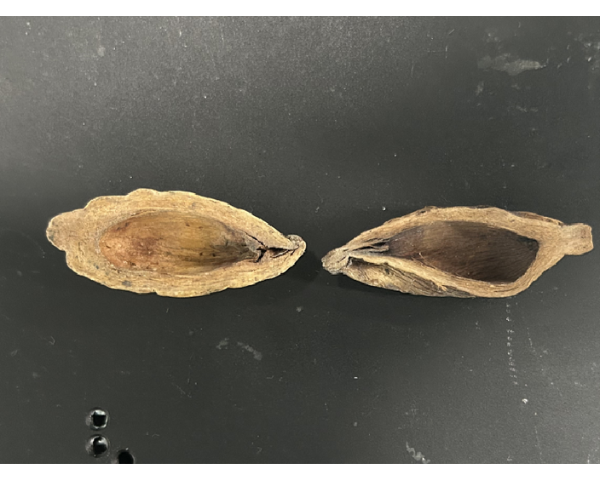

Physical picture

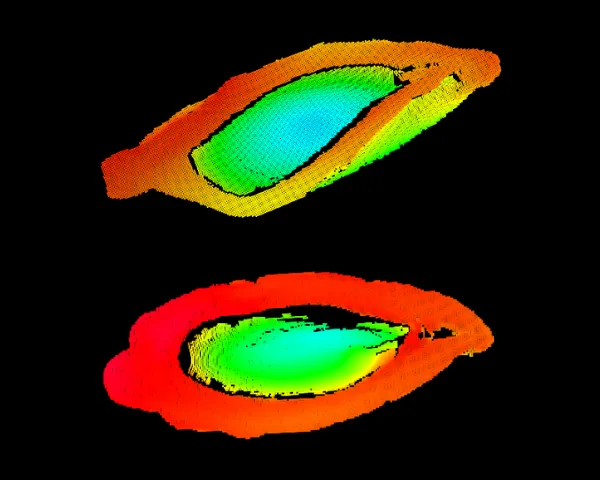

Imaging Effect picture
Imaging Effect picture
SinceVision Solution: SR7400 3D Laser Profiler
01High-Speed Scanning: Captures detailed height profiles at up to 67KHz, ensuring consistent inspection for high-volume operations.
02Exceptional Accuracy: Detects even the smallest variations in betel nut height to maintain quality and uniformity.
03Robust Integration: Easily integrates with automated packaging lines, enhancing productivity and reducing manual intervention.
Camera Selection
| Model number | SR7400 | |||
| Reference distance (CD) | 400mm | |||
| Measuring range | Z-axis height (FS) | 200mm | ||
| X-axis width | Near side | 180mm | ||
| Reference distance | 220mm | |||
| Distal end | 280mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 5μm | ||
| X-axis (width) | 20μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 90μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 17 | |||
| Scanning speed (Hz) | 2500 ~ 8000 | |||
| Dimension (mm) | 189.5×93×48 | |||
| Weight (g) | 840 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential coders are supported | |||
| Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs（10-500Hz）符合 IEC 68-2-6 Fc标准标准 | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
