High-Accuracy Laser Displacement Sensor Application for Smartphone Camera Flatness Detection

The demand for high-performance smartphones has spurred innovations in camera technology. Advancements in high-resolution photography, ultra-wide-angle lenses, and telephoto capabilities make flatness standards for camera aperture mounts a critical factor in production. Ensuring precise measurements with minimal human interference is vital, and SinceVision SGI Series Laser Displacement Sensors provide an optimized solution to meet these stringent requirements.

This article explores the application of these sensors in the smartphone industry, detailing their features, working mechanism, and contributions to maintaining high-quality standards in manufacturing.

Flatness Measurement in Smartphone Cameras

Flatness measurement ensures optimal positioning of camera components, which directly affects imaging quality. Irregularities in flatness can result in blurry or distorted images. With the rise of high-resolution and multifunctional cameras, manufacturers require tools capable of repeatable and precise flatness measurement for large production runs.

Challenges in Camera Flatness Testing

1. High-precision requirements of less than 10μm.

2. Minimizing human errors during manual inspections.

3. Efficient integration with automation systems.

4. Non-invasive methods for fragile and intricate components.

Use Case: Smartphone Camera Aperture Flatness Testing

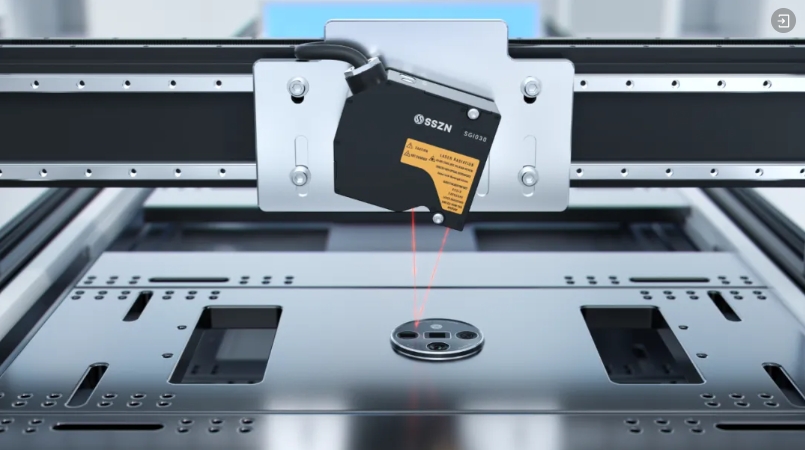

Image: Application Case: Detecting Smartphone Camera Flatness with SinceVision SGI Series Laser Displacement Sensor

In this application, the SGI030 laser displacement sensor measures the flatness of the smartphone camera aperture mount. Here’s a step-by-step overview:

1. Setup: The sensor is mounted on a precision testing platform in a production environment.

2. Data Collection: Using a 10kHz sampling rate, the laser displacement gauge collects real-time measurements at various points on the camera surface.

3. Analysis: Measurement software calculates a fitted plane and evaluates the flatness error. Deviations exceeding thresholds result in defect identification.

4. Result: The process ensures high-quality products with a perfect flatness alignment suitable for advanced camera technologies.

Outcome: Meeting the 10μm repeatability benchmark and reducing human involvement significantly enhance product consistency.

The Solution: SinceVision SGI Series

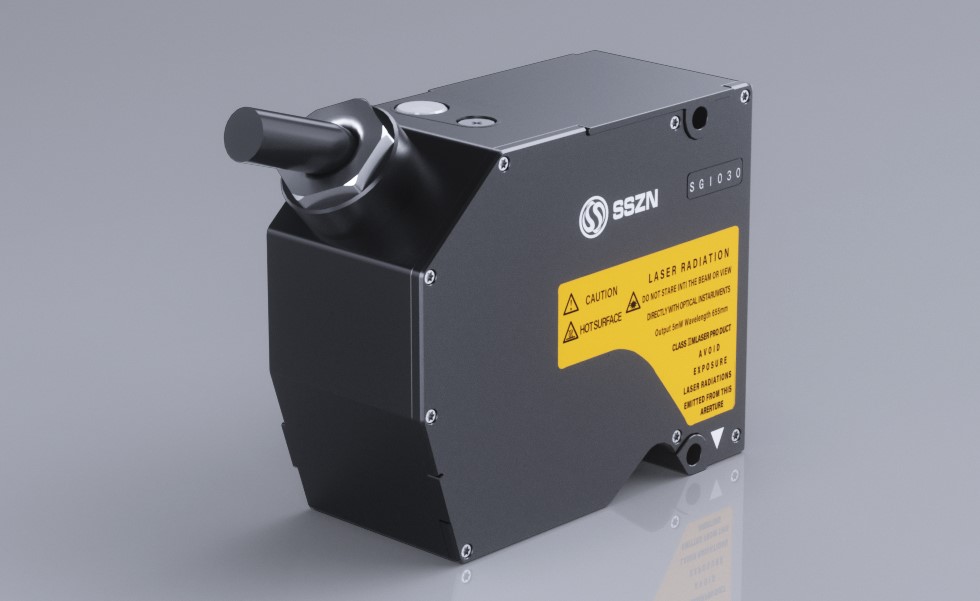

Image: SGI030 Laser Displacement Sensor

The SinceVision SGI030 Laser Displacement Sensors stand out for their superior accuracy, versatility, and reliability. Designed for laser displacement measurement, these non-contact sensors overcome the limitations of traditional measurement techniques by ensuring seamless and accurate evaluations across multiple applications.

Features of the SGI Series Sensors

a. Comprehensive Model Range: The SGI Series includes 10 different models with measurement ranges spanning -650mm to 250mm, allowing manufacturers to choose a sensor tailored to their needs.

b. Unparalleled Precision: Repeat accuracy: 0.05μm, Linearity: ±0.05% F.S., and Spot diameters available for different applications, including a round spot (Φ60μm) and a wide spot (60×400μm).

c. Flexible Sampling Rates: Adjustable sampling frequencies (1 to 88kHz) allow for high-speed measurements in dynamic environments, catering to large-scale manufacturing needs.

d. Robust Integration: The SGI Series provides multiple I/O configurations for compatibility with complex manufacturing systems, enhancing production efficiency and process automation.

Advantages of SGI Sensors in Smartphone Production

The SGI sensors ensure consistent flatness measurements, meeting production benchmarks with repeat error limits below 0.0091mm during 10 dynamic tests. This ensures that only cameras with perfect flatness move to the next phase, safeguarding overall quality.

As a contactless displacement sensor, the SGI Series eliminates the risk of damaging delicate camera components, making it ideal for modern precision manufacturing processes. With features like external interfacing and integration capabilities, these sensors facilitate real-time quality control, aligning seamlessly with Industry 4.0 frameworks.

From camera mounts to glass surfaces, the SGI Series adapts to measure various materials, including: Transparent components, Reflective surfaces, and Multi-layered assemblies

How Laser Displacement Sensors Work

At the core of the SGI Series is the laser displacement measurement principle, which ensures high accuracy without physical contact. Here’s how it works:

1. A laser beam projects onto the camera surface.

2. Reflected light from the surface is analyzed using triangulation.

3. Distances between various points on the surface and the sensor are calculated, creating a detailed profile of the flatness.

For camera flatness testing, the SGI030 model is specifically mounted in a mirrored arrangement to gather data across multiple target points. Advanced algorithms process this data, fitting it into a planar model and highlighting deviations from established tolerances.

Key Contributions of Laser Displacement Technology to the Lithium Industry

While smartphone manufacturing showcases the efficiency of these sensors, their applications extend to industries like: Automotive manufacturing, Lithium battery thickness detection, Medical device quality control and Solar panel alignment

SinceVision’s high accuracy laser distance sensors bridge the gap between high-tech demands and real-world challenges in precision-based applications.

Future of Smartphone Imaging with SGI Series Sensors

The continued evolution of smartphone technology relies on innovations in manufacturing. By integrating laser sensors for displacement distance and position, manufacturers can refine every component, ensuring seamless functionality. The SGI Series serves as the cornerstone of this precision revolution, bringing unparalleled accuracy to every stage of production.

The SinceVision SGI Series Laser Displacement Sensors empower manufacturers to meet ever-growing industry standards. Offering unparalleled precision, robust automation, and versatility, these sensors are essential tools for flatness measurement in smartphone camera production.

Looking to improve your production processes? Contact SinceVision today to learn how our sensors can enhance your manufacturing efficiency and product quality!
