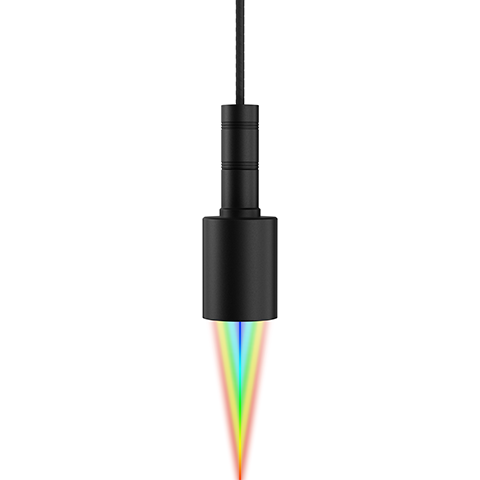

SCI20011
Product Introduction
Sampling frequency up to 33kHz for stable detection
of fast-moving objects and high-frequency vibration amplitude
Technical specifications
| Fixture model | SCI20011 | |
| controller | SCI501A/SCI502A/SCI501B/SCI502B | |
| Fixture Model | SCI-01 | |
| Spot size | 55μm | 115μm |
| Measuring range | 20mm | |
| Working distance | 70mm | |
| Axial resolution | 0.025μm | |
| straightness | ±2.2μm | |
| Angle characteristic | ±11° | |
| Minimum measurable thickness of transparent object | 660μm | |
| diameter | 62mm | |
| length | 123.9mm | |
| weight | 258g | |
