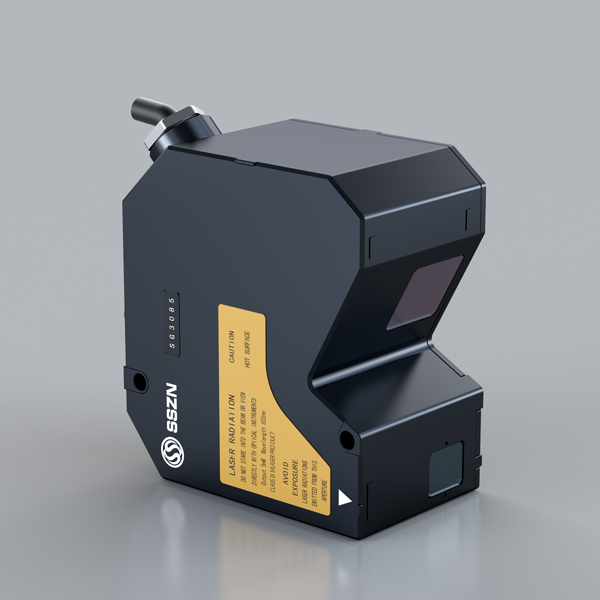

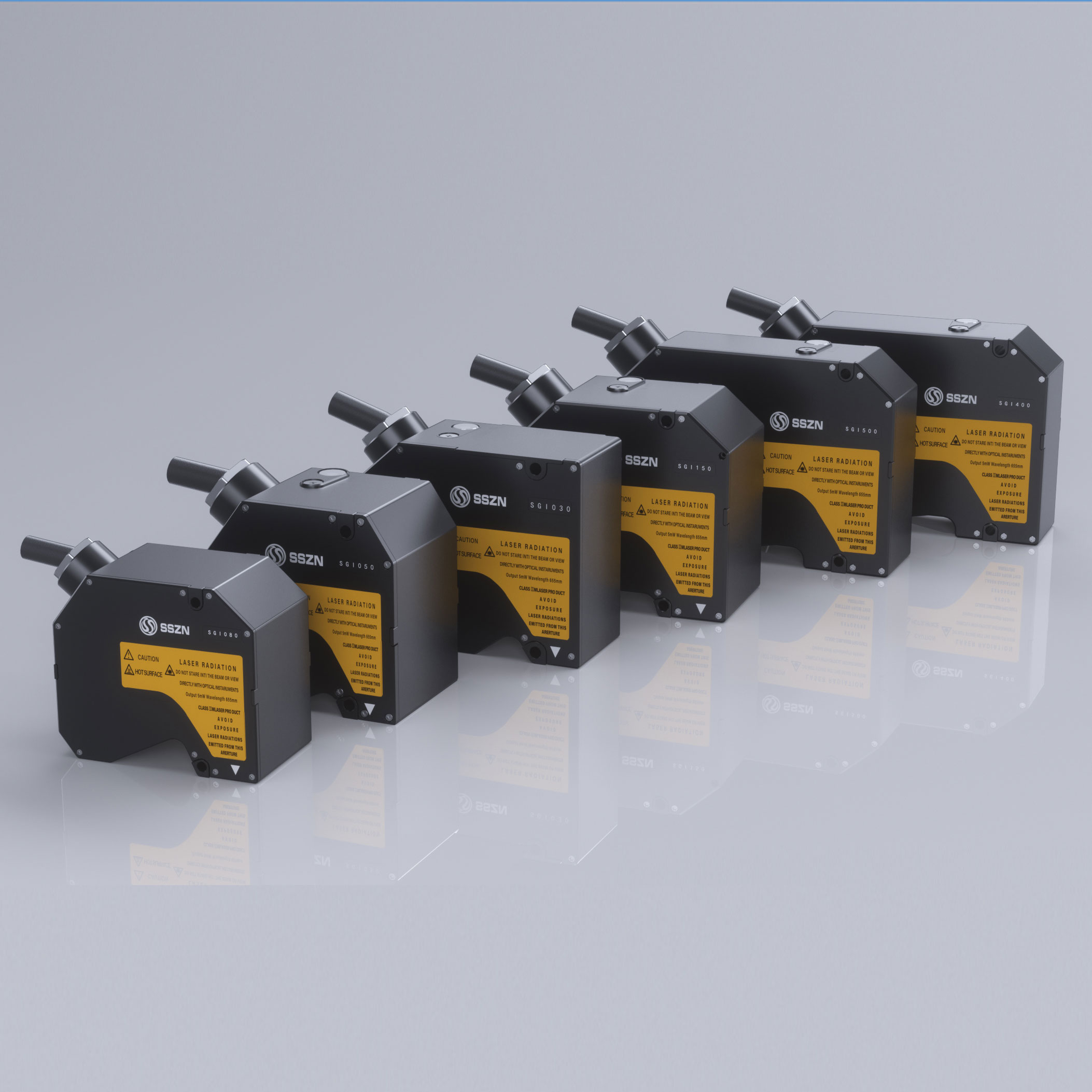

SG3080/SG3085
Product Introduction
88kHz sampling frequency, with high stability, effectively capture the displacement of moving objects, light spot has wide spot and small spot type
Download related documents
Contact Now
price
Technical specifications
| Model number | SG3080/SG3085 | ||
| Reference distance (CD) | 80mm | ||
| Measuring range | -17mm~15mm | ||
| Light source | Light source wavelength | 655nm | |
| Laser class | Class 2 | ||
| Laser output power | 5mW | ||
| Spot diameter (spot size) | Round spot | Φ110μm | |
| Wide spot | 110×720μm | ||
Repetition accuracy ① | 0.2μm | ||
| linearity | ±0.05% F.S. | ||
| Temperature characteristic | 0.01% F.S./℃ | ||
| Sampling frequency (Hz) | 1/2/5/10/20/50/88kHz(7 levels optional) | ||
| Input/output | Communication port | One 100Base-TX/1000Base-T Ethernet interface, one RS232 | |
| Analog output | 1 analog output, support analog voltage and analog current switching | ||
| Encoder input | 1 group difference encoder | ||
| IO input | 14, support timing, zero, reset, laser control, formula switching and other functions | ||
| IO output | 16 channels, determine the status output | ||
| Storage temperature | -20 ~ 70℃ | ||
| Operating temperature | 0 ~ 50 ° C | ||
| Working humidity | 35% to 85% no condensation | ||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | ||
| ESD protection | Contact discharge is 4kV and air discharge is 8kV, in line with IEC 61000-4-2 standards | ||
| Vibration | 10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard | ||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | ||
| IP level | IP67, in accordance with IEC 60529 standard | ||
| Dimensions (mm) | 85×77×47 | ||
| Data cable (wiring) model | SCB-GICAM-HA2-3m/5m/10m | ||
| Weight (including cables) | 376g | ||
