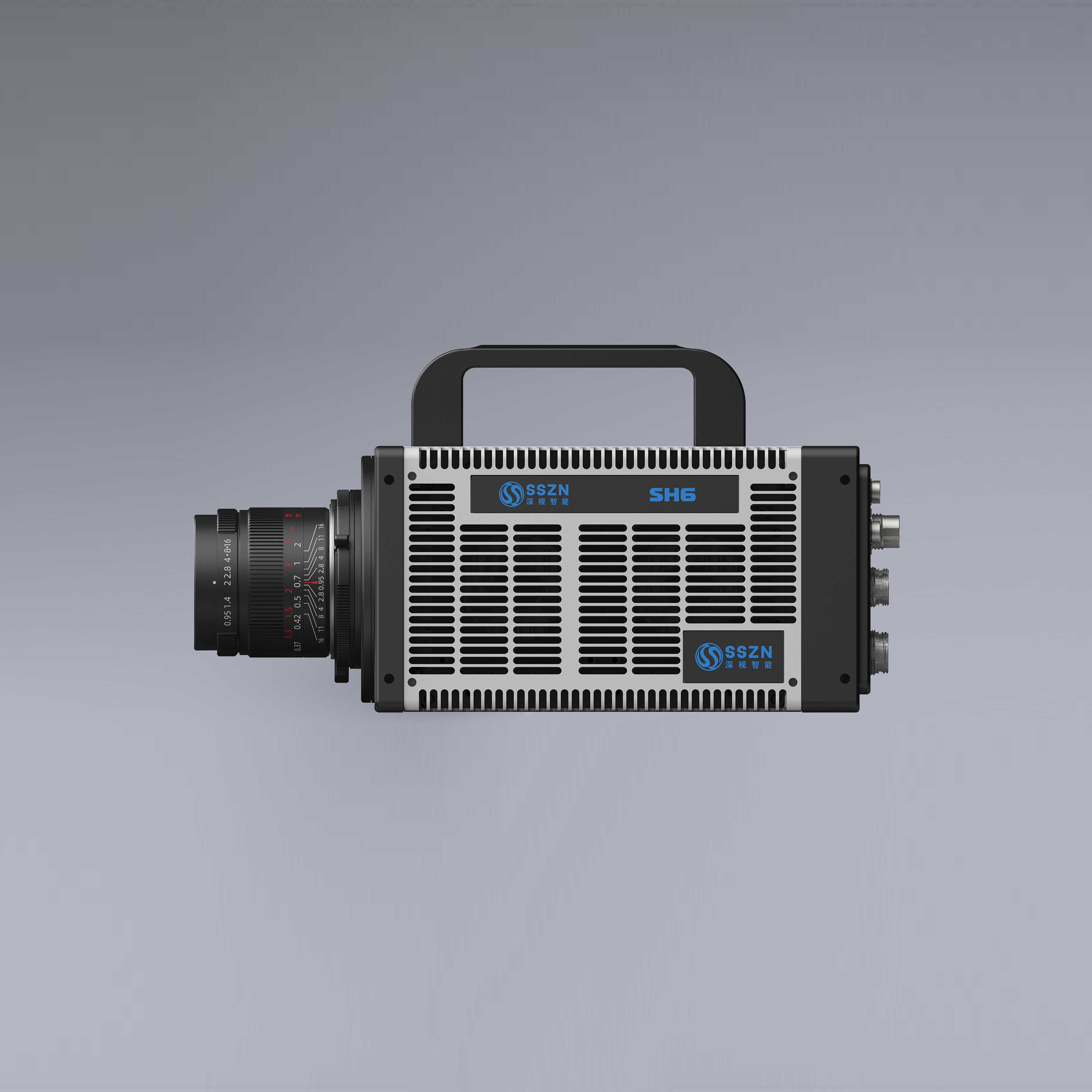

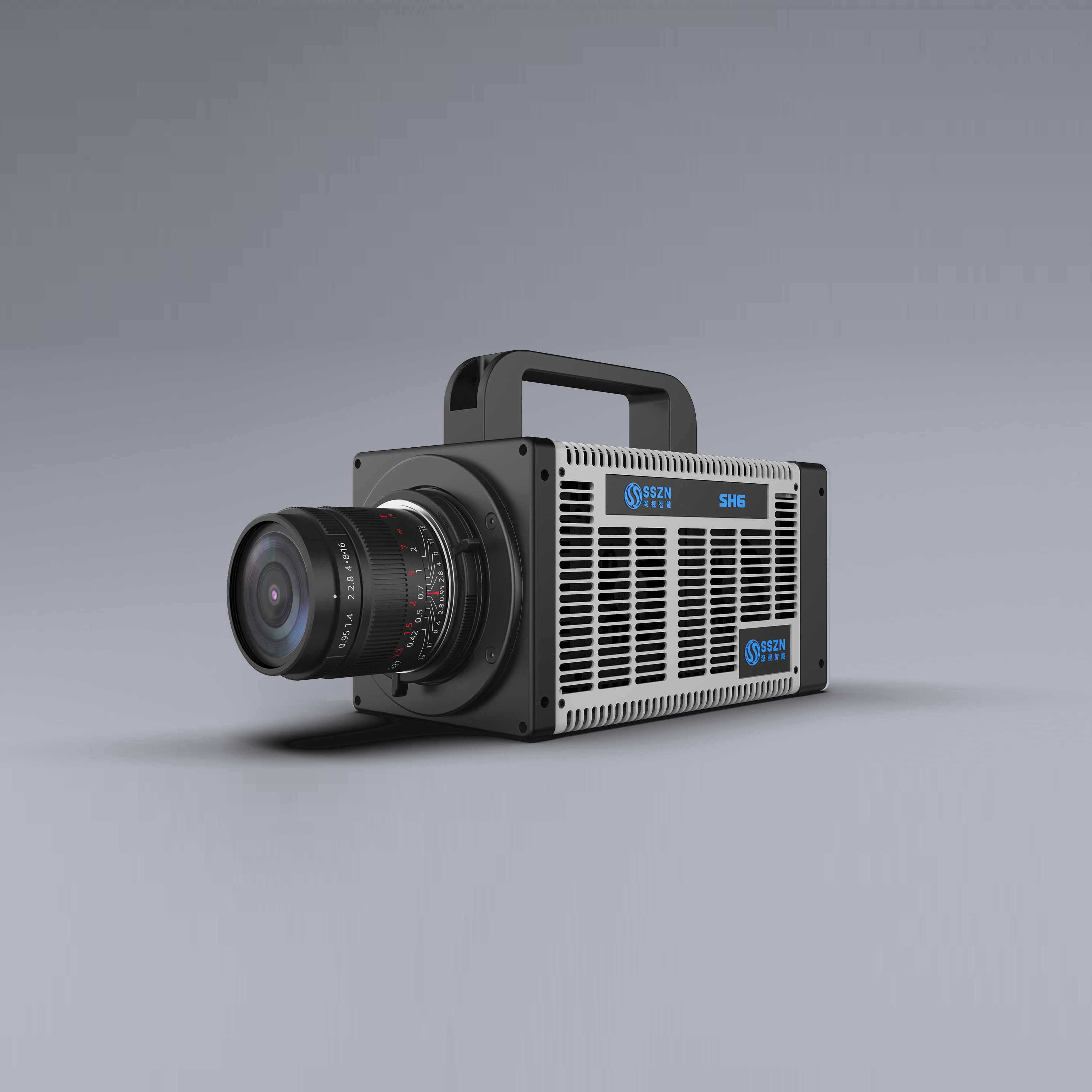

SH6-109
Product Introduction
SH6-109 series is a full-featured high-speed camera created by Deepvision Intelligence for high-end scientific research, national defense, aerospace, high-speed industry and other fields, inheriting the excellent gene of strict quality control of Deepvision product family. After careful polishing, the appearance, structure and performance of the product are presented to the extreme. It not only has 100 Gbps data bandwidth, but also supports up to 20TB optional memory, which can meet the needs of long-term recording.
Download related documents
Contact Now
price
Technical specifications
| performance | |||||||
| resolution | Frame rate | Record time (memory) | Record time (hard disk) | ||||
| 40GB | 80GB | 160GB | 4TB | 12TB | 20TB | ||
| 1280 x 1024 | 9500FPS | 3.4 (s) | 6.8 (s) | 13.6 (s) | 11 (min) | 33 (min) | 55 (min) |
| 1280 x 768 | 12900FPS | 2.7 (s) | 5.4 (s) | 10.8 (s) | 9 (min) | 27 (min) | 45 (min) |
| 1280 x 512 | 19300FPS | 3.0 (s) | 6.0 (s) | 8.0 (s) | 10 (min) | 30 (min) | 50 (min) |
| 1280 x 256 | 38000FPS | 2.7 (s) | 5.4 (s) | 10.8 (s) | 9 (min) | 27 (min) | 45 (min) |
| 1280 x 128 | 75000FPS | 2.7 (s) | 5.4 (s) | 10.8 (s) | 9 (min) | 27 (min) | 45 (min) |
| 1280 x 64 | 135000FPS | 2.7 (s) | 5.4 (s) | 10.8 (s) | 9 (min) | 27 (min) | 45 (min) |
| 1280×8 | 705000FPS | 4.1 (s) | 8.2 (s) | 16.4 (s) | 13.6 (min) | 40 (min) | 68 (min) |
| specification | |||
| Model number | TYPE | SH6-109 | |
| Maximum resolution | Full Resolution | 1280 x 1024 | |
| Full shot speed | Full Frame Rate | 9500fps | |
| Maximum shooting speed | Maximum Frame Rate | 705000fp | |
| Minimum exposure time | Minimum Exposure Time | 1μs(Standard), 100 NS (Optional) | |
| Pixel size | Pixel Size | 14.6 mu m | |
| Standard memory | Standard RAM | 40 GB, 80 GB, and 160 GB are optional | |
| Extended memory | Extended Memor | 4T, 12T, and 20T are optional | |
| Dynamic range | Dynamic Range | 60dB | |
| Analog gain | Analog Gain | X 2, x 4, x 8 | |
| Bit depth | Bit Resolution | 8bit/10bit/12bit | |
| Shutter type | Shutte Mode | Global shutter | |
| color | Color | Monochrome (M)/Color (C) | |
| Window acquisition | ROI | support | |
| Lens bayonet | Lens Mount | Port E is used to switch to ports F, C, and EF | |
| Data interface | Data Interface | Ten Gigabit Ethernet, adaptive Gigabit Ethernet | |
| sensitivity | Sensitivity | ISO67000(M); ISO23000(C) | |
| Fan Control | Fan Control | Supports on/off, adaptive speed based on temperature | |
| Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
| Video Signal Output | Video Signal Output | SDI, Ethernet | |
| Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
| Trigger Mode | Trigger Mode | Manual, IO, Image | |

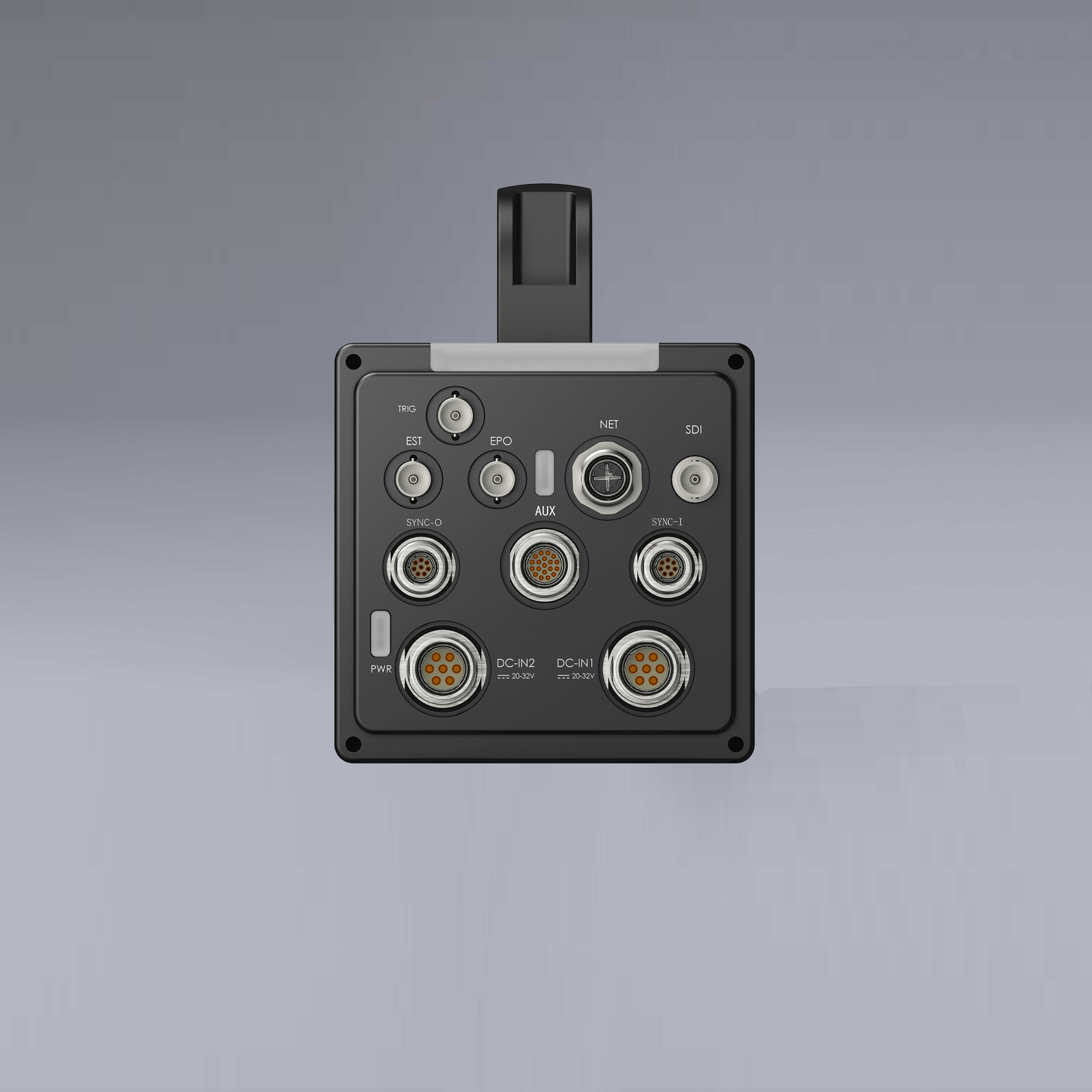

| External Signal | External Signal | Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal Output: trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal | |
| Power Supply | Power Supply | Dual power supply, DC24V | |
| Dimensions (excluding lens) | Dimensions (excluding lens) | 217D × 110W × 110H, excluding raised parts | |
| Weight | Weight | 3.8kg | |
| Power Consumption | Power Consumption | 55W | |
| Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one | |
