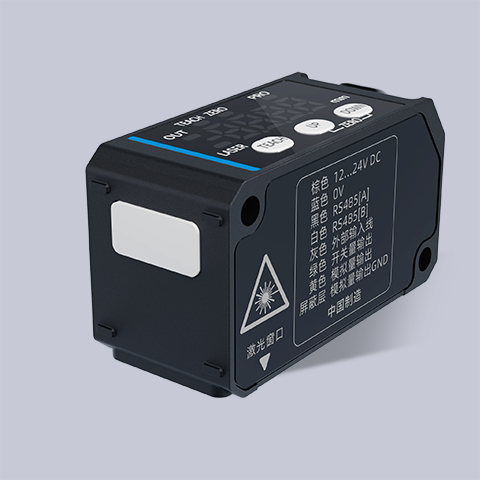

SD-C100
Product Introduction
Integrated body, ultra-small size suitable for various installation environment, has a rich communication mode
Download related documents
Contact Now
price
Technical specifications
| Model number | SD-C100 | ||
| Reference distance (CD) | 100mm | ||
| Measuring range | ±35mm | ||
| Light source | Light source wavelength | 655nm | |
| Laser class | Class 2 | ||
| Laser output power | 1mW | ||
| Spot diameter (spot size) | Near side | 170×210μm | |
| Reference distance | 210×130μm | ||
| Remote side | 350×380μm | ||
Repetition accuracy | 35μm | ||
| linearity | ±0.1% F.S. | ||
| Temperature characteristic | 0.05% F.S./℃ | ||
| Sampling frequency (Hz) | 100/200/1000Hz(3 levels optional) | ||
| Input/output | Analog output | 1 analog output, analog voltage (0~5V) or analog current (4~20mA) Analog voltage or analog current cannot be switched | |
| IO input | 1 way, support laser shutdown, teaching, trigger, zero and other functions | ||
| IO output | 1 route, determine the status output | ||
Operating temperature | -10 ~ 50℃ | ||
| Storage temperature | -20 ~ 60℃ | ||
| Working humidity | 35% to 85% no condensation | ||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | ||
| ESD protection | Contact discharge is 4kV and air discharge is 8kV, in line with IEC 61000-4-2 standards | ||
| VIBRATION | 10~55Hz, dual amplitude 1.5mm,2 hours in X, Y, and Z directions respectively | ||
| impact | 500m/s ² (approximately 50G), 3 times in X, Y, and Z directions respectively | ||
| IP level | IP67, in accordance with IEC 60529 standard | ||
| Size (mm) | 44.4*25*20 | ||
| Weight (including cables) | 86g | ||
