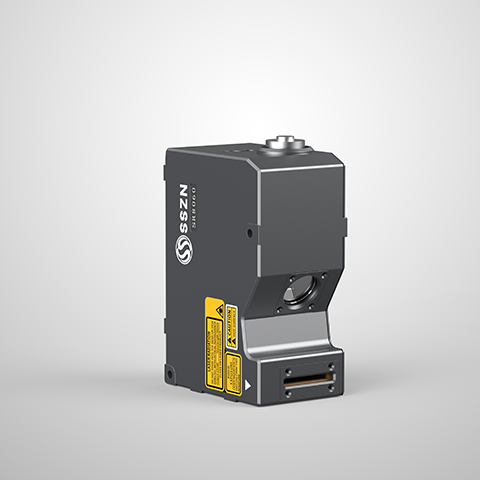

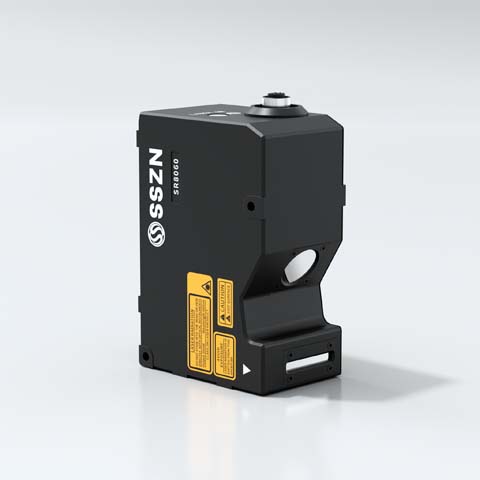

SR8060
Product Introduction
In the detection industry with small field of vision and high precision, there are more customized models, which play the ultimate advantage
Download related documents
Contact Now
price
Technical specifications
| Model number | SR8060 | |||
| Reference distance (CD) | 60mm | |||
| Measuring range | Z-axis height (FS) | 18mm | ||
| X-axis width | Near side | 26mm | ||
| Reference distance | 31mm | |||
| Remote side | 36mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 0.2μm | ||
| X-axis (width) | 5μm | |||
| linearity | Z-axis (height) | ±0.02% of F.S. | ||
| Contour data interval | X-axis (width) | 12μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 33 | |||
| Scanning speed (Hz) | 3200 ~ 67000 | |||
| Dimension (mm) | 124.5×84×55. 2 | |||
| Weight (g) | 630 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential encoder is supported | |||
| Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
