Technical specifications

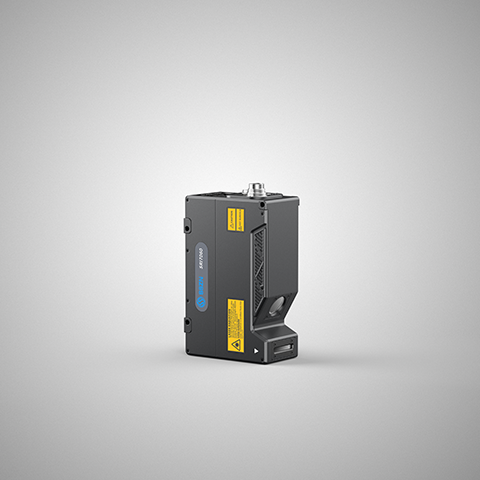

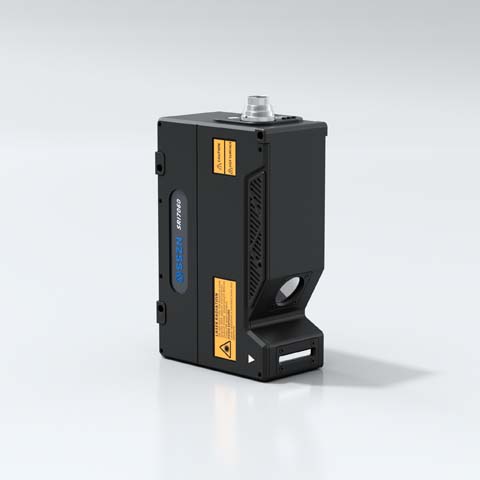

| Model number | SRI7060 | |||
| Reference distance (CD) | 60mm | |||
| Measuring range | Z-axis height (FS) | +13.5mm, -19.5mm (FS=33mm) | ||
| X-axis width | Near side | 34mm | ||
| Reference distance | 40mm | |||
| Remote side | 49mm | |||
| Light source | Light source wavelength | 405nm | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 0.2μm | ||
| X-axis (width) | 4μm | |||
| linearity | Z-axis (height) | ±0.01% of F.S. | ||
| Contour data interval | X-axis (width) | 15μm | ||
| X-axis contour points | 3200 | |||
| Scanning speed (Hz) | 750~10000Hz | |||
| Dimension (mm) | 150.5 x 54 x 94.5mm | |||
| Weight (g) | 1020 | |||
| Temperature characteristic | 0.01% F.S./℃ | |||
| Encoder input | Differential encoder (trigger)④, start signal⑤ | |||
| Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
| Data cable (network cable) model | Type L: SCB-HNET-HR2Z-3m/6m/10m Type I: SCB-HNET-HB2Z-3m/6m/10m | |||
| Data cable (IO cable) model | Type L: SCB-HIO-HR2Z-3m/6m/10m Type I: SCB-HIO-HB2Z-3m/6m/10m | |||
