Inspection of Chip Flatness with SinceVision SR9040 3D Laser Profiler

In the semiconductor industry, ensuring the flatness of chips is a critical step in manufacturing and packaging. Uneven chip surfaces can lead to a variety of issues, from poor solder connections to mechanical stress and reduced thermal performance. Here's how semiconductor companies use advanced technologies like the 3D Laser Profiler to inspect chip flatness and maintain high-quality production.

Importance of Chip Flatness Inspection

Chip flatness is essential for several reasons. Firstly, it ensures reliable packaging and soldering. Uneven surfaces can result in cold joints, weak bonds, or solder bridging, compromising package reliability. Flatness ensures consistent contact with substrates or PCBs, enhancing overall package integrity. Additionally, even flatness is crucial for improving manufacturing yield in processes like flip-chip, wire bonding, and surface-mount technology (SMT). Misalignment during die bonding or underfill issues can reduce production yield if chips do not sit evenly on the substrate.

Moreover, preventing mechanical stress and failures is another key benefit of ensuring chip flatness. Uneven chips introduce stress, leading to cracks, delamination, or interconnect failures over time. By controlling flatness, stress concentration is minimized, enhancing chip longevity. Furthermore, flatness is vital for ensuring thermal performance. Non-flat surfaces reduce thermal contact, increasing thermal resistance and leading to overheating or performance degradation in high-power chips. Proper thermal interfaces and heatsinks require flat surfaces for optimal cooling.

Chip flatness is also critical for advanced packaging technologies. In 2.5D and 3D packaging, chip stacking and interposer technologies demand precise alignment. Poor flatness can cause connection failures in Through-Silicon Vias (TSVs) or micro-bumps. Additionally, maintaining high assembly precision is essential in automated manufacturing processes. Consistent flatness is vital for accurate alignment in high-speed assembly lines, ensuring efficient production without misalignment or handling issues.

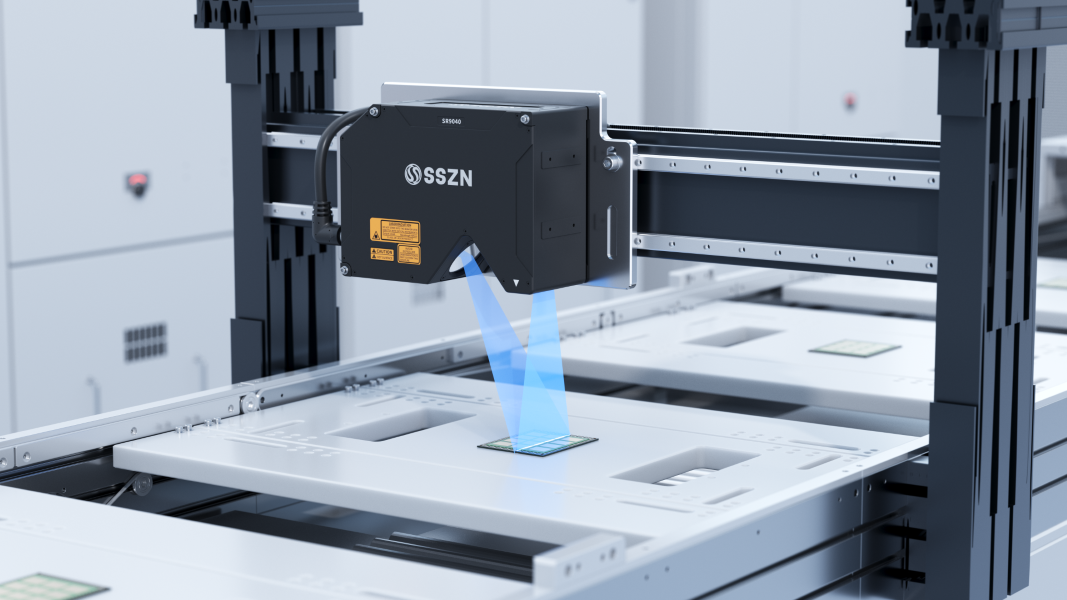

Solution: SR9040 3D Laser Profiler

To address these challenges, semiconductor companies rely on advanced inspection sensors like the SR9040 3D Laser Profiler. This cutting-edge technology provides high accuracy in chip flatness inspection with several key features. The SR9040 3D Laser Profiler offers 6400 contour points, the highest in the industry, providing detailed surface profiles. It features a resolution of 3μm x, ensuring precise detection of even slight deviations in flatness. With ±0.02% of FS linearity, the SinceVision’s SR9040 delivers consistent and reliable measurements.

Benefits of Using 3D Laser Profilers

3D Laser Profilers, such as the SR9040, are preferred for chip flatness inspection due to their precision. They offer high-resolution measurements, capturing detailed surface profiles. These systems can inspect chips quickly, integrating well into high-speed manufacturing lines. Additionally, they are versatile, suitable for various industrial applications, from semiconductor to automotive and aerospace.

In conclusion, the use of 3D laser profilers in chip flatness inspection offers numerous benefits, from non-contact measurement and high-speed precision to versatility across different surfaces and integration with industrial automation systems. These advantages make 3D laser profilers indispensable tools for maintaining high-quality production in the semiconductor industry.
