Sealant nail detection
Industry pain points and demands
The core needs to be pressed into the glue nail after a liquid injection. If the glue nail is not pressed in place or skewed, it will lead to the risk of liquid leakage. Deep vision intelligent 3D camera can accurately and quickly detect the shape of glue nails, and 3D vision software with position correction function can avoid the influence of cell position deviation on detection.
Advantages & characteristics
01
X axis resolution 0.015mm, speed up to 8000Hz, small laser Angle, less shadow
02
3D vision software has a position correction function, even if the cell position offset, but also stable detection
03
High cost performance: under the same configuration, the cost advantage is obvious
Effect display

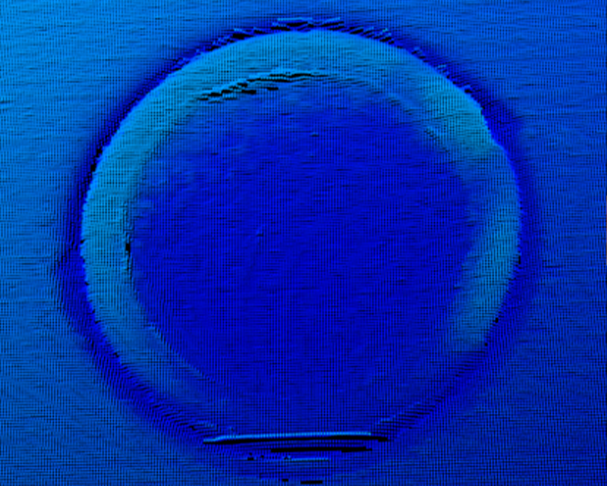

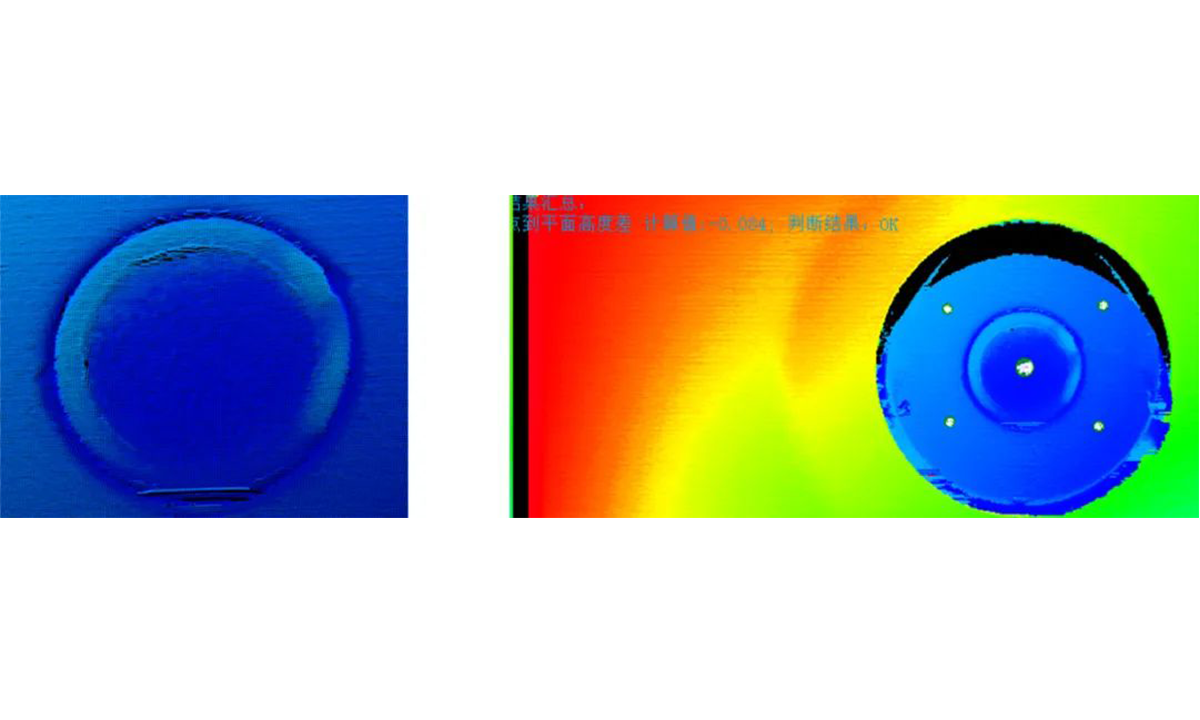

Normal rubber nail

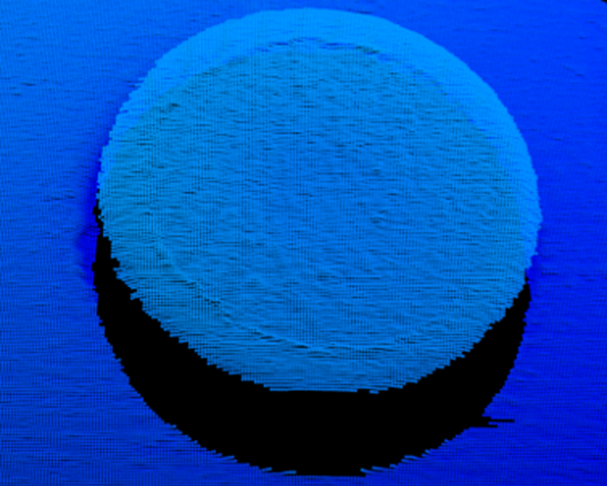

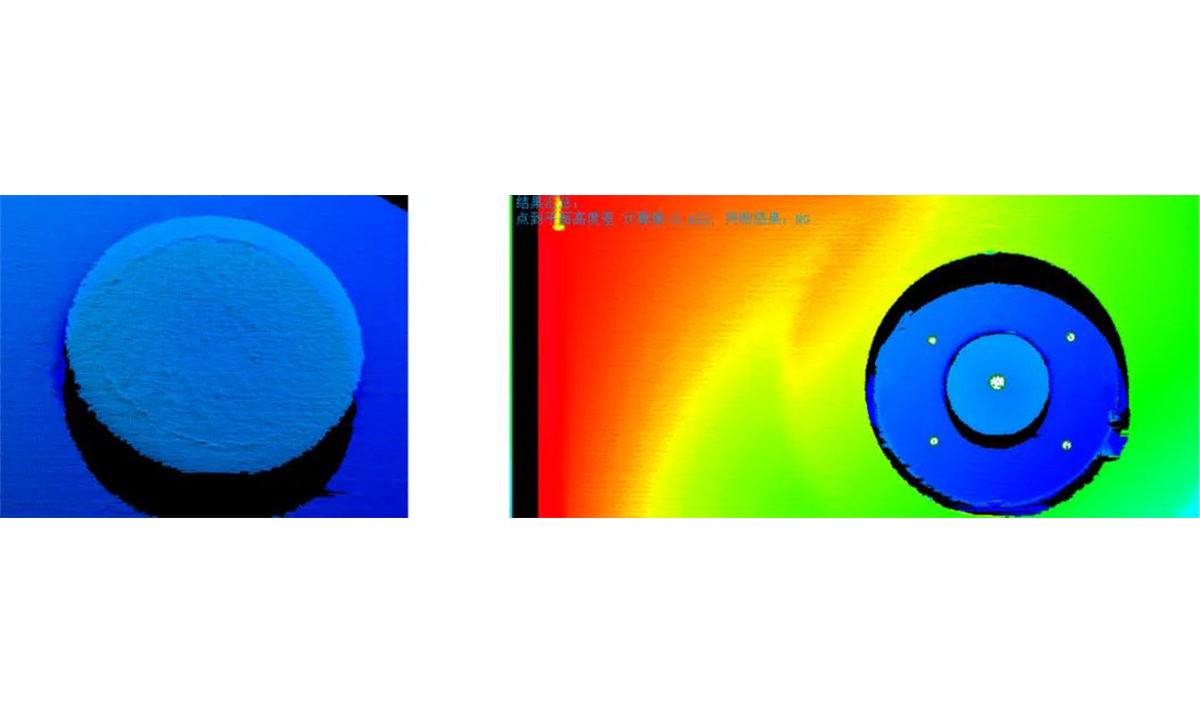

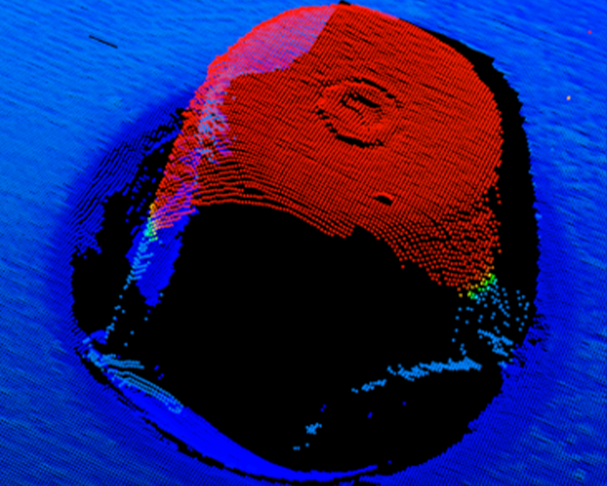

Convex nail

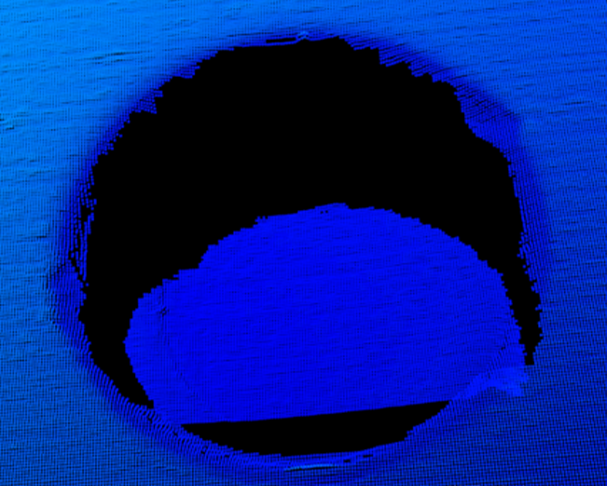

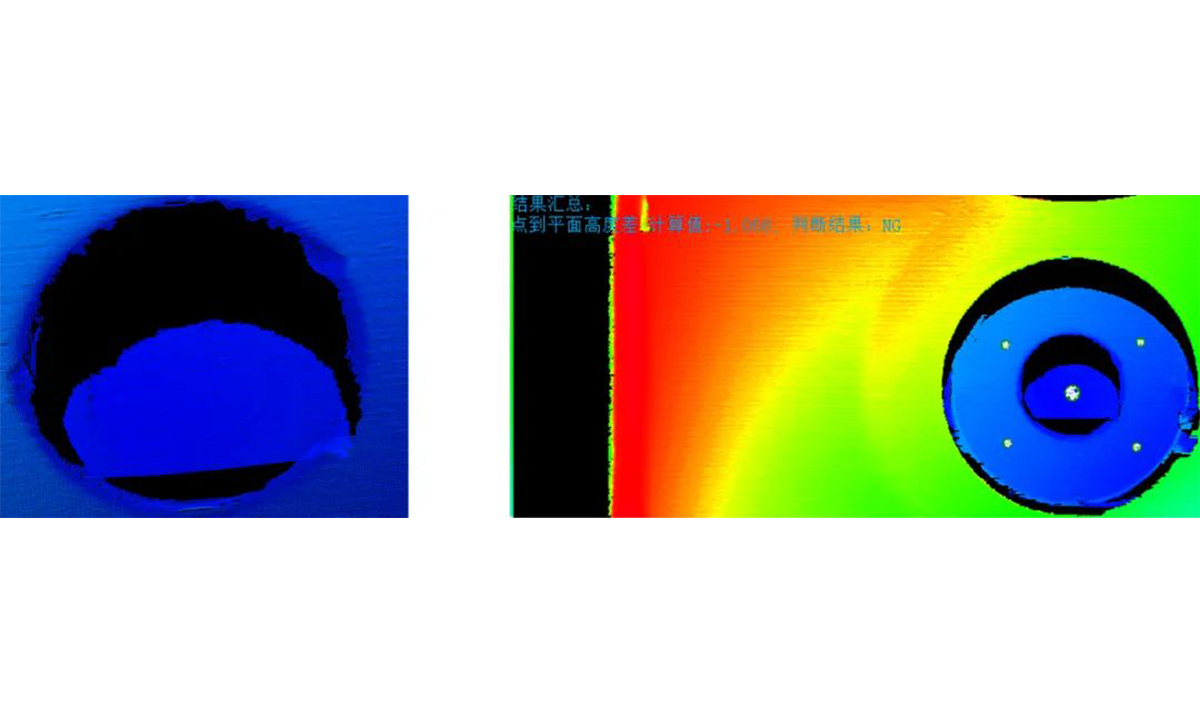

Concave nails & no nails
Camera Selection
| Model number | SR7060 | |||
| Reference distance (CD) | 60mm | |||
| Measuring range | Z-axis height (FS) | The 9.5 mm | ||
| X-axis width | Proximal end | The 41.5 mm | ||
| Reference distance | 44mm | |||
| Distal end | The 46.5 mm | |||
| Light source | Light source wavelength | 405nm | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 0.3 mu m | ||
| X-axis (width) | 4 microns | |||
| linearity | Z-axis (height) | ±0.05% FS | ||
| Contour data interval | X-axis (width) | 15 microns | ||
| X-axis contour points | 3200 | |||
| Scanning speed (Hz) | 2500 ~ 8000 | |||
| I/O interface | 8 programmable input interfaces, 8 programmable output interfaces | |||
| Encoder interface | One single end, one difference encoder | |||
| Input/output | One RS232 interface and one 100Base-TX/1000Base-T Ethernet interface | |||
| Operating temperature | 0 to 45°C | |||
| Storage temperature | -20 to 70°C | |||
| Working humidity | 35% to 85% no condensation | |||
| ESD protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC61000-4-2 standard | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, compliant with IEC61000-4-4 standard | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea | |||
| Vibration | 10Gs（10-500Hz）符合 IEC 68-2-6 Fc标准 | |||
| IP level | IP67 | |||
| Size (mm) | 156 x 97.5 x 55 | |||
| Data cable (wiring) model | SCB-HCAM-HB1-3m、SCB-HCAM-HB1-10m | |||
| Weight | 750g | |||
