Through-Beam Edge Sensor

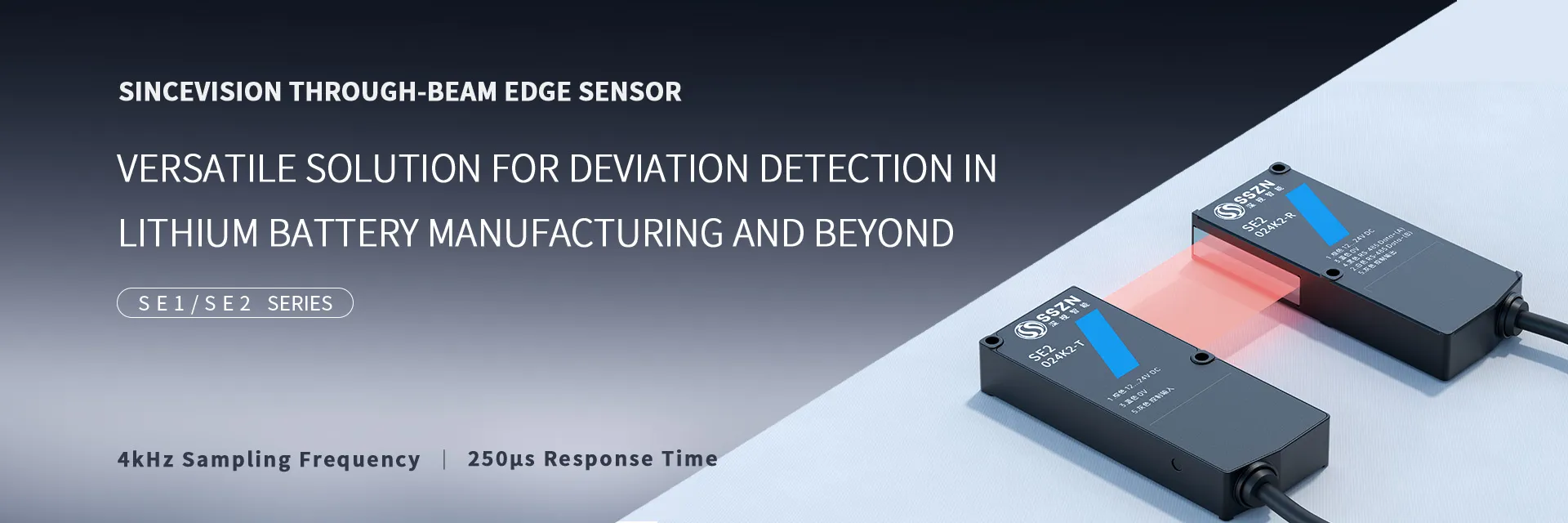

SinceVision Through-Beam Edge Sensor, offering non-contact, high-speed edge detection for precise positioning. Ideal for web edge control, sheet metal detection, and quality control across multiple industries.

Through-Beam Edge Sensor
SE1 series

The edge measurement sensor is mainly used in the detection of coiling, pole plate defect and diaphragm correction in the lithium electric industry. The maximum sampling frequency is 4kHz and the response time is 250μs

SE1 series
SE2 series

SE2 series
Product advantages
  • 01
    Strong performance

    The highest sampling frequency is 4kHz and the response time is 250μs

  • 02
    Rich means of communication

    Communication mode includes EtherCAT, voltage analog, current analog communication

  • 03
    Good anti-interference performance

    Passed EMC certification from third-party authority; All cables with shield protection, good anti-interference performance

  • 04
    Obvious advantage in cost performance

    Realize the localization of precision correction sensor replacement, delivery time and service are guaranteed, cost-effective advantage, to help customers reduce costs

  • 05
    Pole piece damage detection capability is the best in the industry

    In customer's cell production, the false detection rate of pole piece damage is far less than 1/10000 (Requirement: 1/1000)

01
Strong performance
02
Rich means of communication
03
Good anti-interference performance
04
Obvious advantage in cost performance
05
Pole piece damage detection capability is the best in the industry

Product List

Measuring range
Measuring range
  • Edge mode: ±5mm; Width mode: 9.999mm
  • Edge mode: ±12mm; Width mode: 24mm
Repetition accuracy
Repetition accuracy
  • 2 microns
  • 50μm
Linear accuracy
Linear accuracy
  • Plus or minus 0.4% F.S.
  • Plus or minus 0.4% F.S.
Sampling frequency
Sampling frequency
  • 4kHz
  • 2kHz
Sampling period
Sampling period
  • 250μs
  • 0.5ms
Communication mode
Communication mode
  • RS-485
