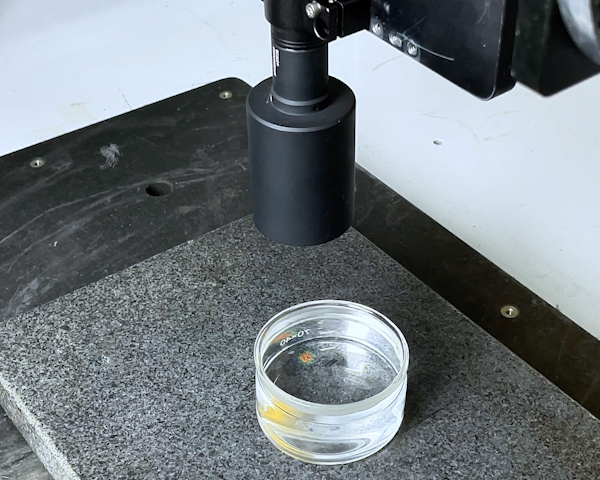

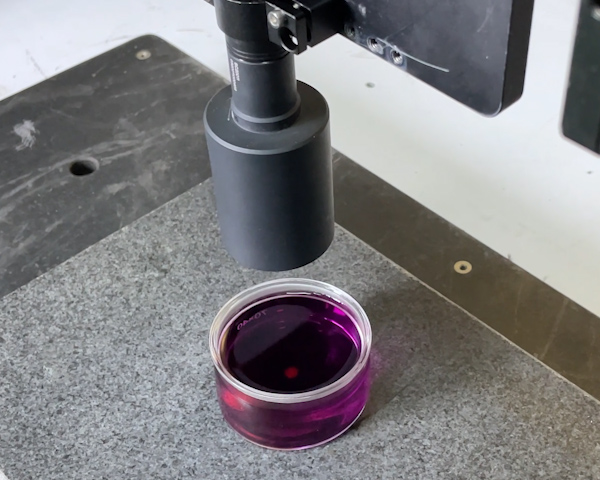

Measuring the Surface Height of Liquids in Different Colors with Spectral Confocal Sensor

Measuring the Surface Height of Liquids in Different Colors with Spectral Confocal Sensor
Measuring the Surface Height of Liquids in Different Colors with Spectral Confocal Sensor
Measuring the Surface Height of Liquids in Different Colors with Spectral Confocal Sensor
Measuring the Surface Height of Liquids in Different Colors with Spectral Confocal Sensor

Measuring the Surface Height of Liquids in Different Colors with Spectral Confocal Sensor

Industry pain points and demands

Industry advancements demand precision, especially in controlling liquid levels in industries like chemicals, pharmaceuticals, food, and beverages. These requirements are even more critical in the packaging materials industry, where consistency and product quality rely heavily on exact measurements.


Liquids of varying colors represent diverse raw materials, intermediates, or finished goods. Ensuring accurate surface height measurement across these variations can be a challenge, particularly when striving for automated control and consistent quality.

Contact Now

SinceVision Solution: SCI20011 Spectral Confocal Sensors

01High Precision & Efficiency: The SCI20011 Spectral Confocal Sensor ensures accurate liquid level measurements with a fast sampling frequency of 33kHz, suitable for high-speed environments and vibration tracking.
02Industry-Leading Performance: The SCI Series provides stable measurement solutions for the packaging materials industry, accommodating diverse liquid types and colors under varying industrial conditions.
03Enhanced Quality Control: By supporting automated process control, the SCI Series helps manufacturers improve production consistency, streamline processes, and maintain superior quality standards.

Camera Selection

Fixture modelSCI20011
controllerSCI501A/SCI502A/SCI501B/SCI502B
Fixture ModelSCI-01
Spot size55μm115μm
Measuring range20mm
Working distance70mm
Axial resolution0.025μm
straightness±2.2μm
Angle characteristic±11°
Minimum measurable thickness of transparent object660μm
diameter62mm
length123.9mm
weight258g
