DIC Technology for Composite Material Mechanical Behavior with High-Speed Camera
High-speed cameras combined with Digital Image Correlation (DIC) technology are essential for analyzing composite material mechanical behavior in advanced industries, but significant challenges remain. These include:

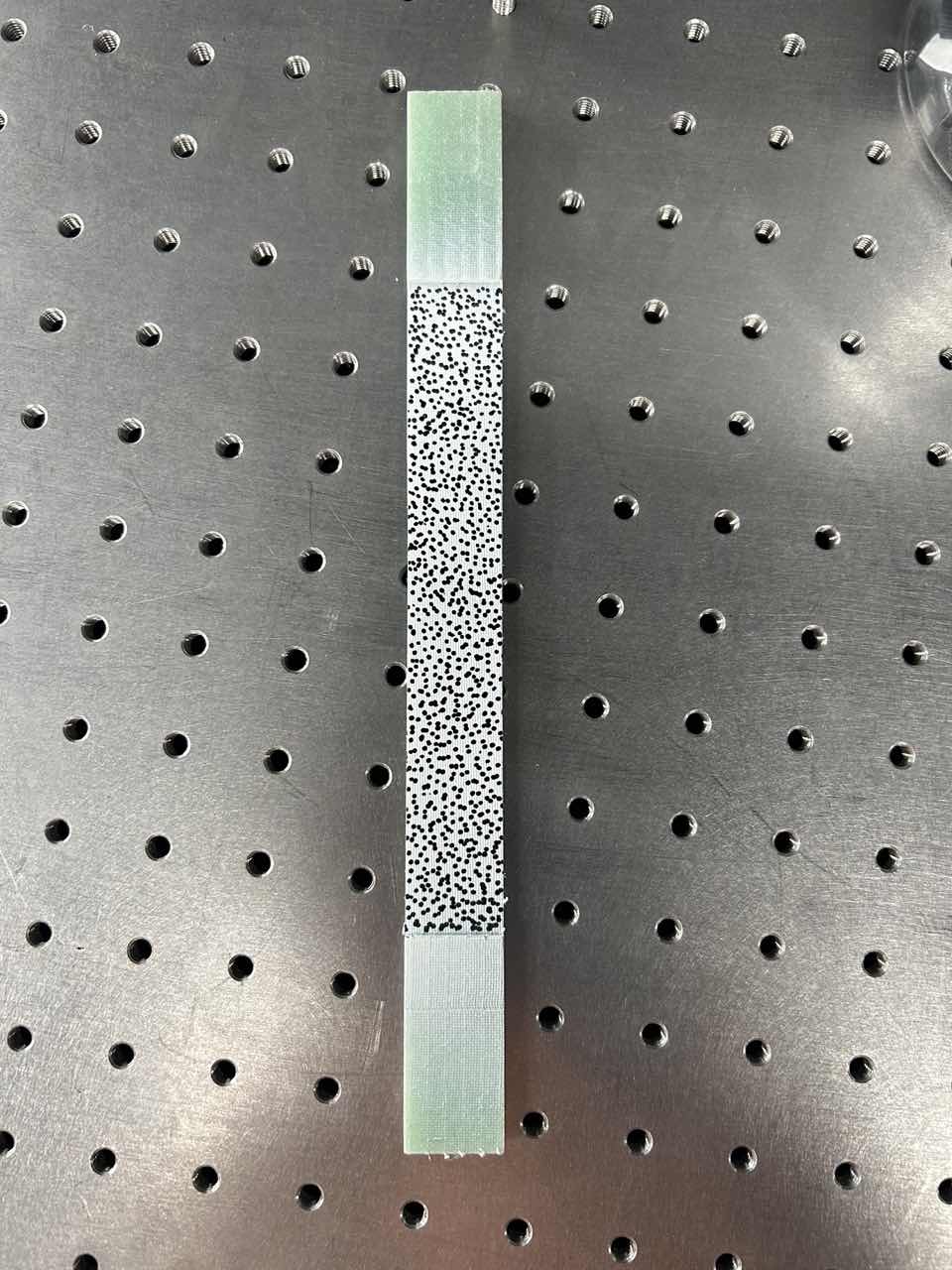

In cutting-edge fields like aerospace and new energy, composite materials are valued for their lightweight and high-strength properties, but researchers face persistent issues with brittle fractures during tensile testing, which are difficult to study due to their rapid and complex nature.
Traditional methods struggle to capture and analyze the dynamic fracture behavior of composites, such as crack initiation and propagation, requiring non-invasive, high-speed imaging solutions to track these events accurately in real time.

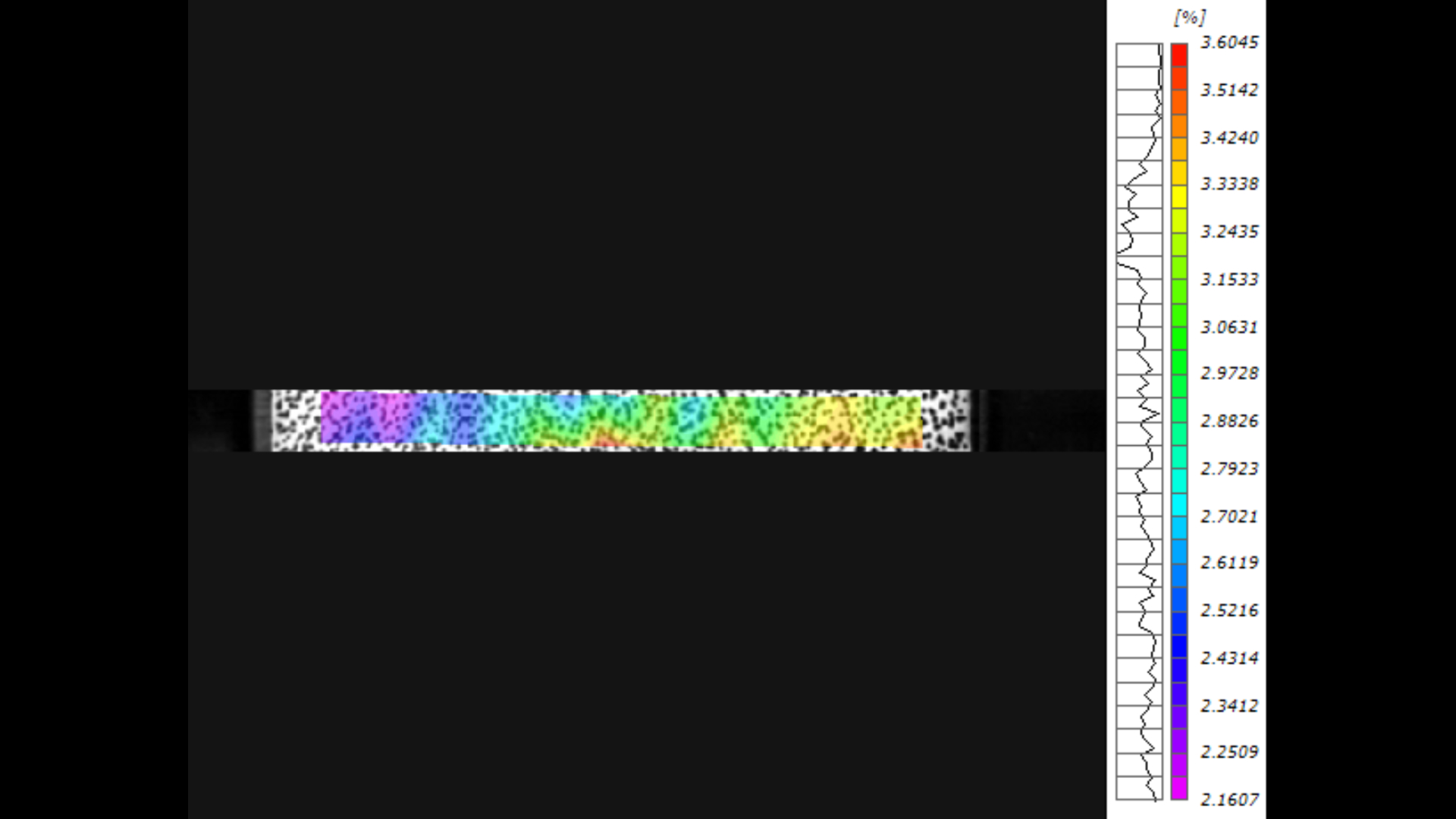

The need for full-field strain distribution analysis is critical for understanding composite material performance, but conventional strain gauges are limited to local measurements, necessitating advanced techniques like DIC paired with high-speed cameras to overcome these limitations and provide comprehensive data.

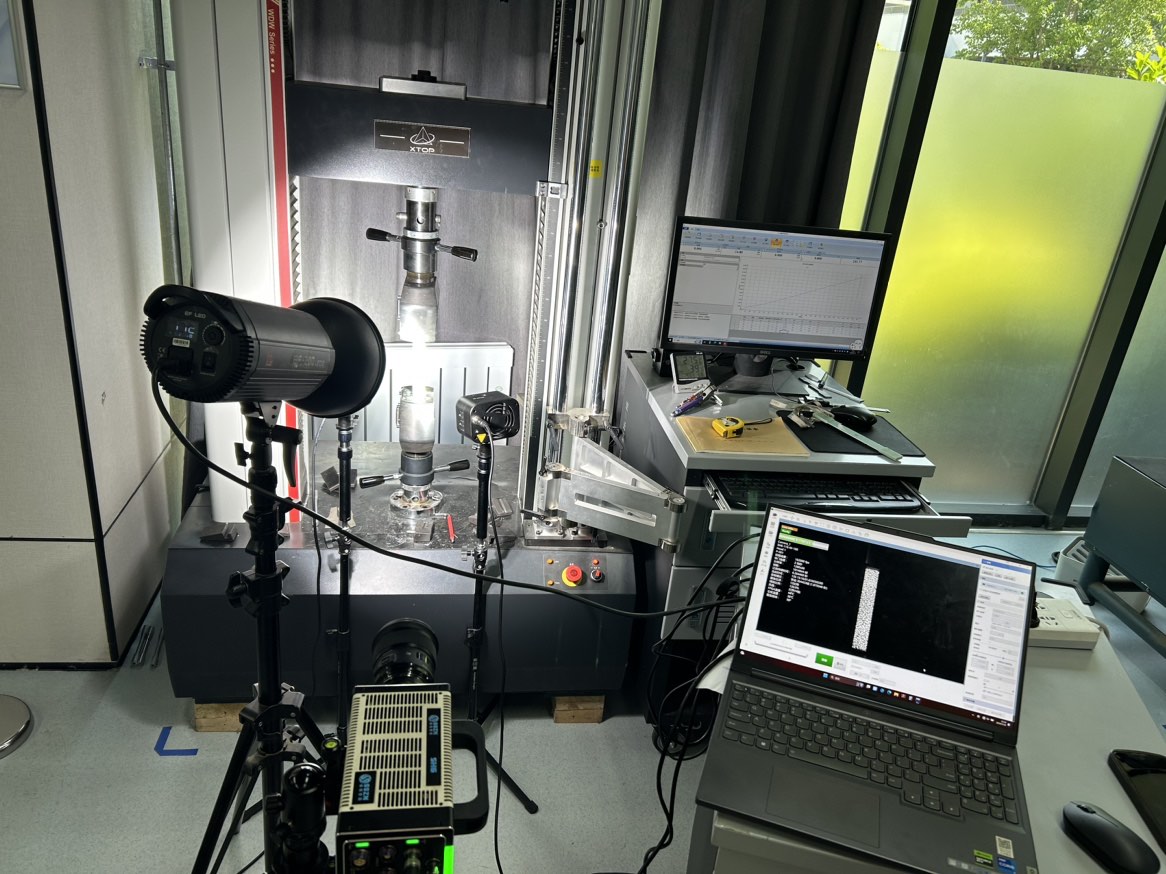

SinceVision Solutions: SH6 Series High-Speed Camera
Camera Selection
| performance | |||||||
| resolution | Frame rate | Record time (memory) | Record time (hard disk) | ||||
| 40GB | 80GB | 160GB | 4TB | 12TB | 24TB | ||
| 1280 x 1024 | 15800FPS | 2 (s) | 4.1 (s) | 8.3 (s) | 3.4 (min) | 10.3 (min) | 20.7 (min) |
| 1280 x 808 | 20000FPS | 2 (s) | 4.1 (s) | 8.3 (s) | 3.4 (min) | 10.3 (min) | 20.7 (min) |
| 1280 x 512 | 31500FPS | 2 (s) | 4.1 (s) | 8.3 (s) | 3.4 (min) | 10.4 (min) | 20.8 (min) |
| 1280 x 256 | 62500FPS | 2.1 (s) | 4.1 (s) | 8.3 (s) | 3.5 (min) | 10.4 (min) | 20.9 (min) |
| 1280 x 128 | 121000FPS | 2.1 (s) | 4.3 (s) | 8.6 (s) | 3.6 (min) | 10.8 (min) | 21.6 (min) |
| 1280×64 | 221000FPS | 2.3 (s) | 4.7 (s) | 9.4 (s) | 3.9 (min) | 11.8 (min) | 23.7 (min) |
| 1280×32 | 410000FPS | 2.5 (s) | 5.1 (s) | 10.2 (s) | 4.2 (min) | 12.7 (min) | 25.5 (min) |
| 1280×8 | 1150000FPS | 3.6 (s) | 7.2 (s) | 14.5 (s) | 6 (min) | 18.2 (min) | 36.4 (min) |
| specification | |||
| Model number | TYPE | SH6-116 | |
| Maximum resolution | Full Resolution | 1280 x 1024 | |
| Full shot speed | Full Frame Rate | 15800fps | |
| Maximum shooting speed | Maximum Frame Rate | 1150000fp | |
| Minimum exposure time | Minimum Exposure Time | 100 NS | |
| Pixel size | Pixel Size | 14.6 μm | |
| Standard memory | Standard RAM | 40GB/80GB/160GB/320GB | |
| Extended memory | Extended Memor | 4T, 12T, and 24T are optional | |
| Dynamic Range | Dynamic Range | 60dB | |
| Analog Gain | Analog Gain | ×2、×4、×8 | |
| Bit Resolution | Bit Resolution | 8bit | |
| Shutte Mode | Shutte Mode | Global shutter | |
| Color | Color | Monochrome (M)/Colorful (C) | |
| ROI | ROI | Support | |
| Lens Mount | Lens Mount | E interface, can be connected to F interface, C interface, EF interface | |
| Data Interface | Data Interface | 10 Gigabit Ethernet, Adaptive Gigabit Ethernet | |
| Sensitivity | Sensitivity | ISO67000(M)；ISO23000(C) | |
| Fan Control | Fan Control | Supports on/off, adaptive speed based on temperature, and manual 5-speed adjustment | |
| Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -40~65 ℃ wide temperature version | |
| Video Signal Output | Video Signal Output | SDI, Ethernet | |
| Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
| Trigger Mode | Trigger Mode | Manual, IO, Image | |
| External Signal | External Signal | Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal Output: trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal | |
| Power Supply | Power Supply | Dual power supply, DC24V | |
| Dimensions (excluding lens) | Dimensions (excluding lens) | 217D × 110W × 110H, excluding raised parts | |
| Weight | Weight | 3.8kg | |
| Power Consumption | Power Consumption | 55W | |
| Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one | |
