Precise Measurement of Curved Glass Surfaces with SinceVision's Spectral Confocal Displacement Sensors
Industry pain points and demands
The intricate manufacturing process of 3D curved glass, involving hot bending on two or four sides, demands precise control over R-angle and side profile to ensure optimal device assembly. Traditional measurement techniques struggle to accurately assess the curved surfaces of smartphones and tablets.
SinceVision's SC03560 Spectral Confocal Displacement Sensor technology offers a reliable solution. By leveraging the capabilities of the SC series, manufacturers can accurately measure R-angle and profile, ensuring the highest quality standards for these complex components.
SinceVision Solution: SC03560 Spectral Confocal Displacement Sensor

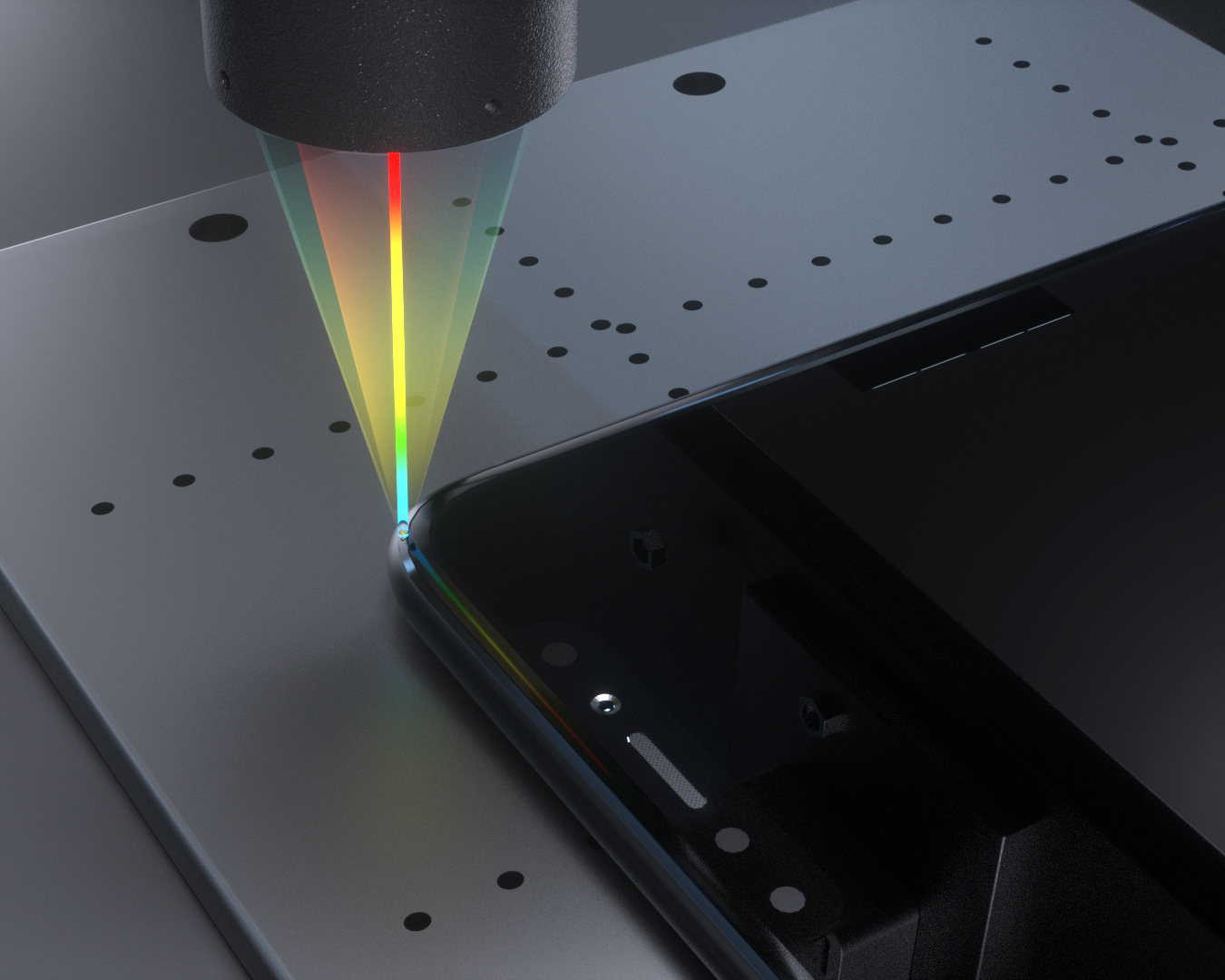

01SinceVision's SC03560 Spectral Confocal Displacement Sensor offers a robust solution to these challenges. With a wide measurement range of ±60 degrees, it can accurately measure the R-angle and profile of complex curved glass surfaces.
02The sensor's high-precision measurement capabilities, coupled with a minimum spot size of 5.8μm and a maximum sampling frequency of 10kHz, ensure accurate and efficient data acquisition.
03 Additionally, it's non-contact measurement technique prevents damage to the delicate glass surface. By seamlessly integrating into existing production lines, the SC03560 empowers manufacturers to achieve optimal quality control and improve overall product performance.
Camera Selection
| Model number | SC03560 | |
| controller | SC5001A / SC5002A | SC5001B / SC5002B |
| Optical fiber jumper | 50μm / 125μm | 105μm / 125μm |
| Spot size | 5.8 mu m | 12.2 mu m |
| Measuring range | The 3.5 mm | |
| Angle characteristic | Plus or minus 60 ° | |
| Numerical aperture | 0.866 | |
| Working distance | The 12.8 mm | |
| Axial resolution | 0.006 mu m | |
| straightness | ±0.01% F.S | |
| Minimum measurable thickness of transparent object | 150 microns | |
| diameter | 83mm | |
| length | 257mm | |
| weight | 2300g | |
