Solar panel clearance detection
Industry pain points and demands

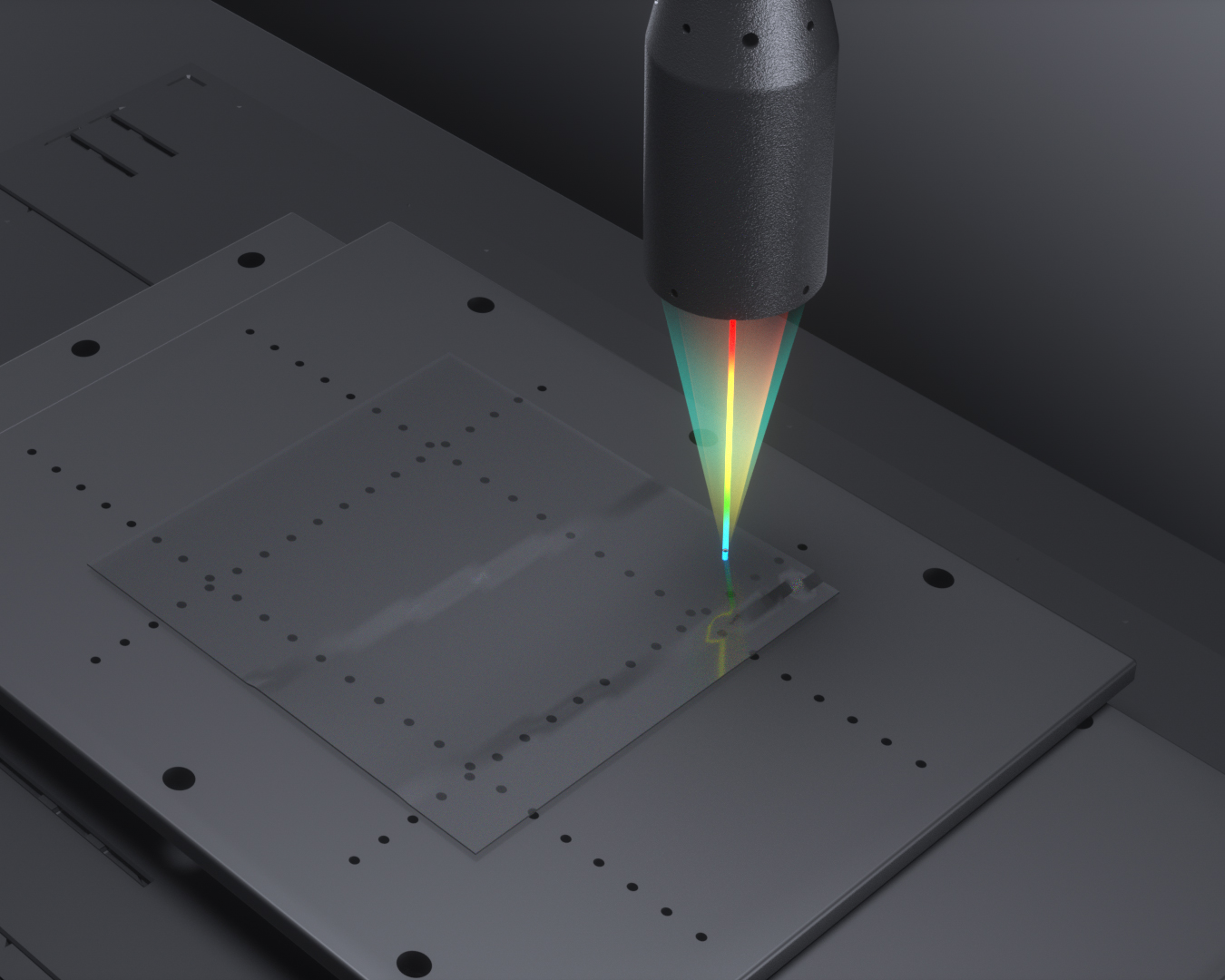

To meet different voltage requirements, the clearance between the front panel and the base panel of the same type of solar panel must be consistent. Deep view intelligent spectral confocal sensor SC series is used to measure the gap distance between the front panel and the substrate from the panel surface during the process of panel pressing.
Advantages & characteristics
01 It can be iterated and optimized in time for various special silicon wafer detection
02
The thickness repeatability of the wafer was 0.5μm, the TTV repeatability was 1.5μm, and the line mark repeatability was 1.5μm
02
Achieve full product inspection, detection efficiency is higher
Camera Selection
| Model number | SC01045 | |
| controller | SC5001A / SC5002A | SC5001B / SC5002B |
| Optical fiber jumper | 50μm / 125μm | 105μm / 125μm |
| Spot size | 7.1 mu m | 14.9 mu m |
| Measuring range | 1mm | |
| Angle characteristic | Plus or minus 45 ° | |
| Numerical aperture | 0.707 | |
| Working distance | 10mm | |
| Axial resolution | 0.006 mu m | |
| straightness | ±0.01% F.S | |
| Minimum measurable thickness of transparent object | 30 microns | |
| diameter | 47mm | |
| length | 142mm | |
| weight | 350g | |
