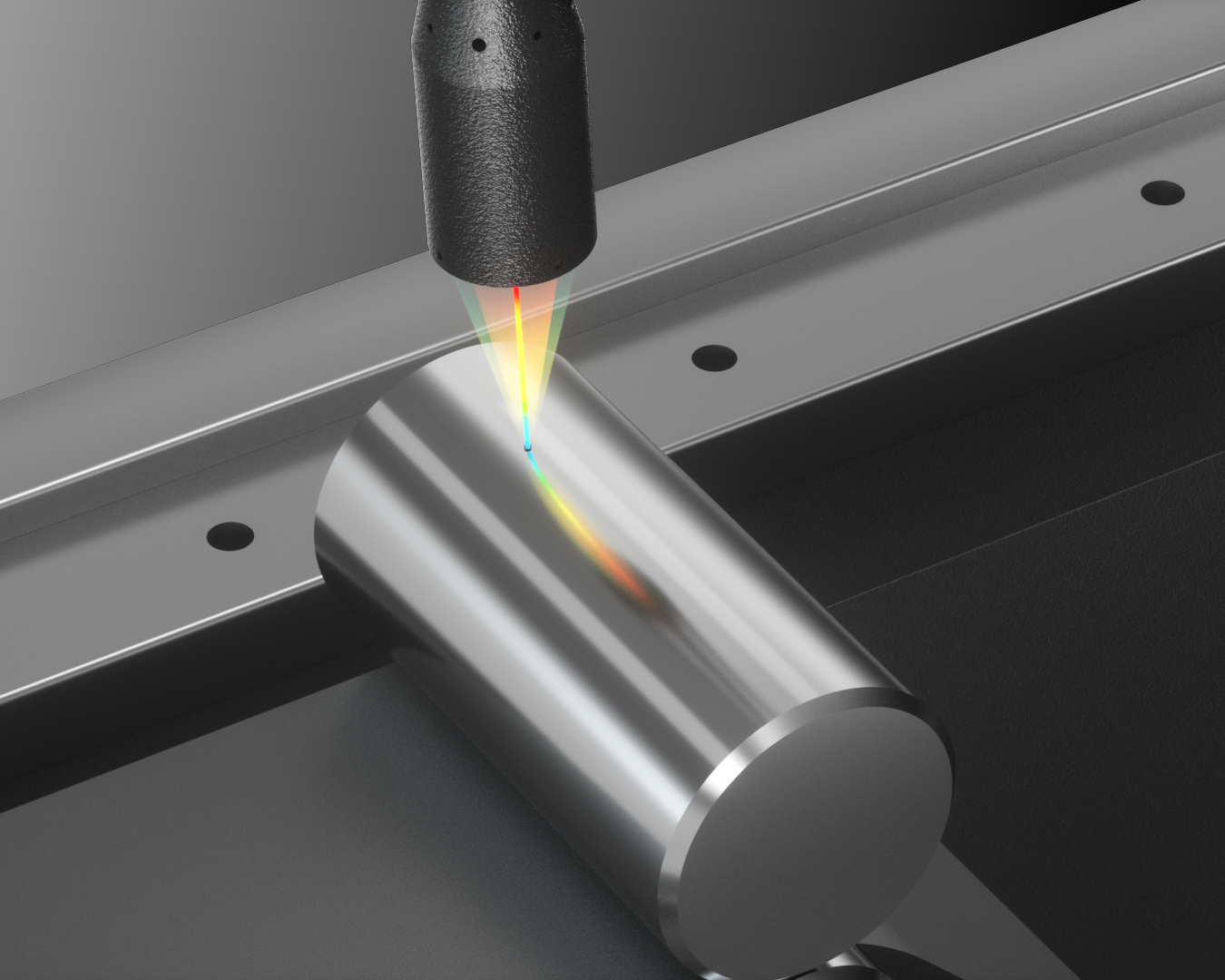

Roll Runout Detection with SinceVision's Spectral Confocal Sensor
Industry pain points and demands
To prevent uneven coating thickness caused by roll runout, maintaining the runout within the tolerance zone is essential. The SinceVision SC Series pectral confocal sensor provides quick and accurate detection of even the slightest beat changes in rollers, offering unparalleled precision for roll runout measurement in the lithium industry.
SinceVision Solution: SC03560 Spectral Confocal Displacement Sensor
01The SinceVision SC03560 Spectral Confocal Sensor offers exceptional accuracy for measuring mirrors, transparent materials, liquids, and objects with multiple reflections, making it an ideal choice for precision applications within the lithium industry.
02Featuring a minimum spot size of 5.8μm and a maximum sampling frequency of 10kHz, this spectral confocal sensor ensures high-speed, precise measurements that meet the demanding requirements of modern manufacturing processes.
02With a maximum measurement angle of ±60° and excellent lens temperature resistance, the SC03560 sensor provides robust and reliable performance across a variety of challenging measurement environments.
Camera Selection
| Model number | SC03560 | |
| controller | SC5001A / SC5002A | SC5001B / SC5002B |
| Optical fiber jumper | 50μm / 125μm | 105μm / 125μm |
| Spot size | 5.8 mu m | 12.2 mu m |
| Measuring range | The 3.5 mm | |
| Angle characteristic | Plus or minus 60 ° | |
| Numerical aperture | 0.866 | |
| Working distance | The 12.8 mm | |
| Axial resolution | 0.006 mu m | |
| straightness | ±0.01% F.S | |
| Minimum measurable thickness of transparent object | 150 microns | |
| diameter | 83mm | |
| length | 257mm | |
| weight | 2300g | |
