Camera module height difference detection with SinceVision's 3D Laser Profiler
Industry pain points and demands
The relentless pursuit of high-quality mobile phones has led to increasing demands on component precision. Camera modules, in particular, require meticulous inspection to ensure optimal performance. The complexity of these components, coupled with the need for rapid production cycles, presents unique challenges. SinceVision's SR9040 3D Laser Profiler is the perfect innovative solution for the consumer electronics in the market.
SinceVision Solution: SR9040 3D Laser Profiler
01The SR9040 3D Laser Profiler, a cutting-edge solution from SinceVision, is specifically designed to address the challenges faced in modern camera module inspection. It's high-speed scanning capabilities enable rapid data acquisition, while it's precision measurement ensures accurate detection of even the smallest deviations.
02Furthermore, the SR9040's flexible integration and reliable performance make it a valuable asset for manufacturers seeking to optimize their production processes. With a remarkable repeatability of 0.002mm in height difference measurements, the SR9040 offers a compelling cost-performance ratio, making it the ideal choice for enhancing quality control and efficiency.

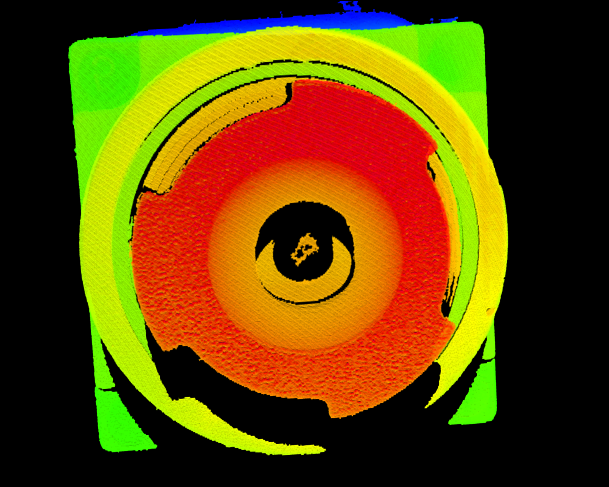

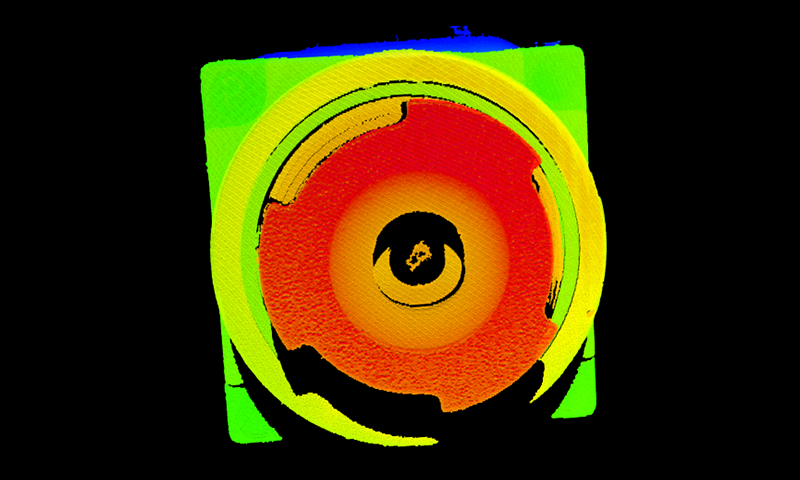

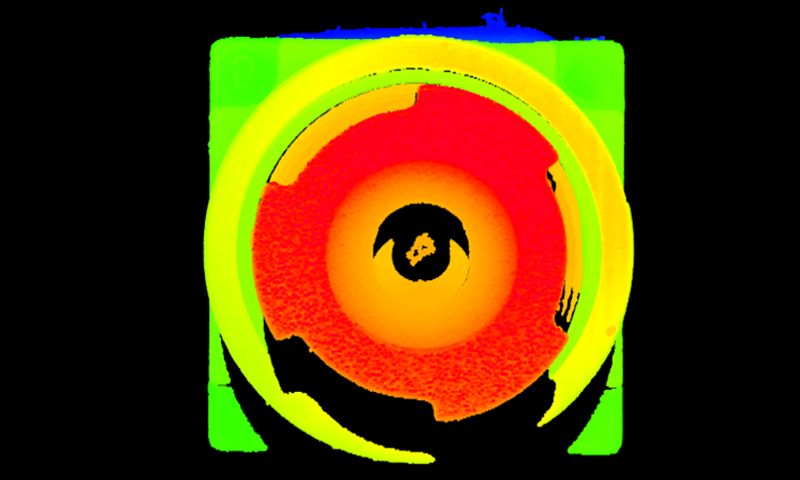

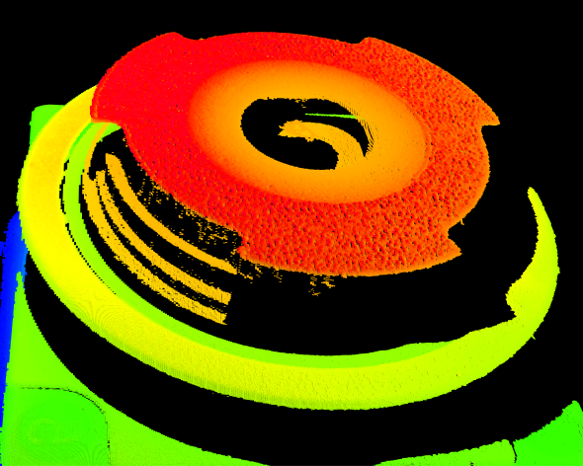

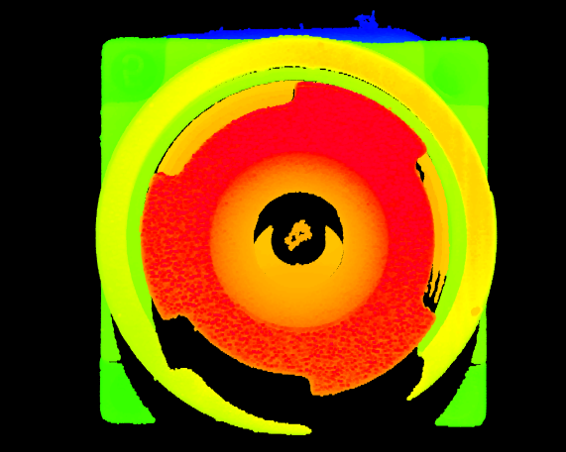

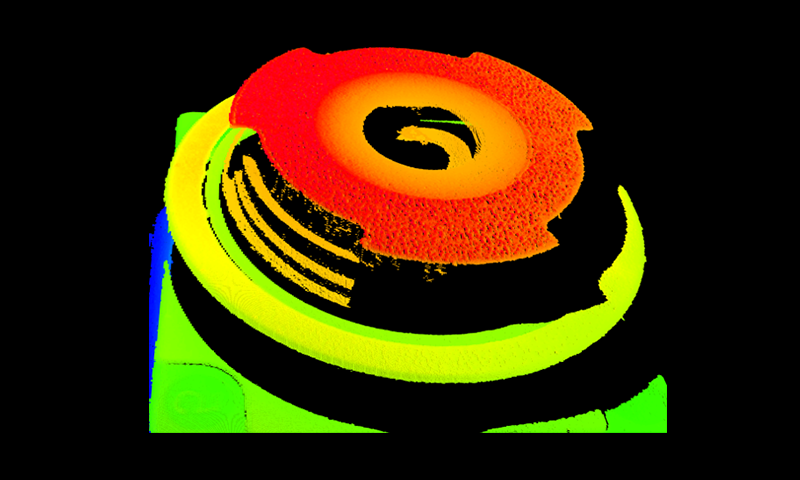

Effect display
Camera Selection
| Model number | SR9040 | |||
| Reference distance (CD) | 40mm | |||
| Measuring range | Z-axis height (FS) | 6.6mm | ||
| X-axis width | Proximal end | The 16.2 mm | ||
| Reference distance | 17mm | |||
| Distal end | 18mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 0.1 mu m | ||
| X-axis (width) | 0.6 mu m | |||
| linearity | Z-axis (height) | ±0.02% of F.S. | ||
| Contour data interval | X-axis (width) | 3 microns | ||
| X-axis contour points | 6400 | |||
| Reflection Angle (°) | 50 | |||
| Scanning speed (Hz) | 1500 ~ 13000 | |||
| Foot inch (mm) | 179 x69. 5 x130 | |||
| Weight (g) | 1920 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential encoder is supported | |||
| Input/output | 1 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
