Measurement of Metal Plate Hole Diameter, Hole Spacing, and Flatness with SinceVision 3D Laser Profiler
Industry pain points and demands
The automotive industry demands unparalleled precision in component manufacturing, particularly for metal plates used in critical assemblies. SinceVision’s SR7240 3D Laser Profiler delivers comprehensive measurement solutions, ensuring the accuracy and reliability required for hole diameter, hole spacing, and flatness.
Physical Picture or Imaging Effect Picture

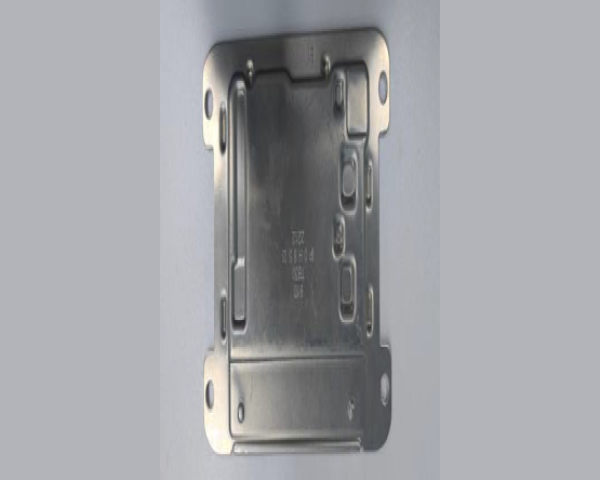

Physical picture

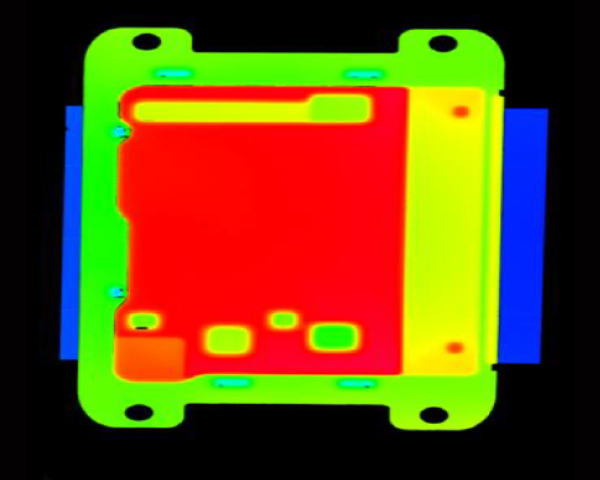

Imaging effect picture
SinceVision Solution: SR7240 3D Laser Profiler
01High Accuracy Inspection: The SR7240 3D Laser Profiler achieves exceptional precision, guaranteeing repeatable and reliable measurements for metal plate flatness and apertures.
02Fast Performance: With a measurement speed of just 5 seconds, the SR7240 meets the speed demands of high-volume automotive production lines.
03Advanced Profiling Technology: Equipped with state-of-the-art 3D laser sensors, the profiler detects even the smallest deviations, ensuring adherence to automotive standards.
Camera Selection
| Model number | SR7240 | |||
| Reference distance (CD) | 240mm | |||
| Measuring range | Z-axis height (FS) | 40mm | ||
| X-axis width | Near side | 138mm | ||
| Reference distance | 147mm | |||
| Remote side | 157mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 1μm | ||
| X-axis (width) | 13μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 50μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 26 | |||
| Scanning speed (Hz) | 2500 ~ 10000 | |||
| Dimension (mm) | 189.5×93×48 | |||
| Weight (g) | 840 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential coders are supported | |||
| Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
