3D Inspection of Engine Covers with SinceVision 3D Laser Profiler
Industry pain points and demands
Engine covers in automotive manufacturing must meet strict requirements height difference and flatness requirements to ensure optimal performance and reliability. Small deviations can compromise assembly precision, engine safety, and overall product quality. Manufacturers need a reliable solution to inspect these parameters with high accuracy and repeatability.
Physical Picture or Imaging Effect Picture

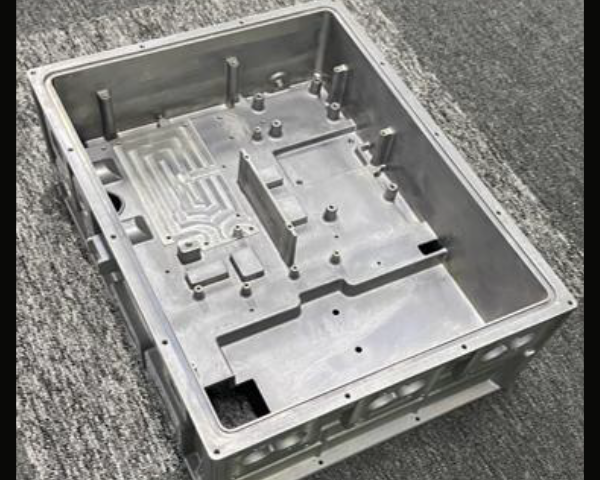

Physical picture

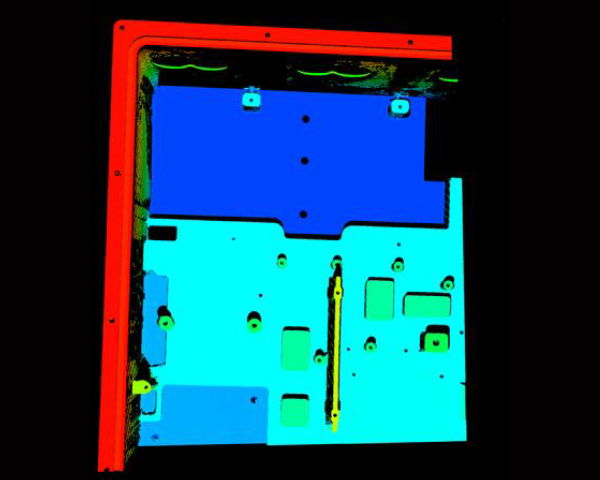

Imaging effect picture
SinceVision Solution: SR7400 3D Laser Profiler
01High Precision: The SinceVision SR7400 3D Laser Profiler achieves repeatability of 0.05mm, ensuring accurate detection of height differences and flatness variations in engine covers.
02Advanced 3D Scanning Technology: Equipped with cutting-edge 3D laser profiling, the SR7400 delivers detailed measurements, enabling manufacturers to address quality issues promptly.
03Optimized Efficiency: Fast and reliable inspection speeds enhance production line efficiency while maintaining stringent quality control standards.
Camera Selection
| Model number | SR7400 | |||
| Reference distance (CD) | 400mm | |||
| Measuring range | Z-axis height (FS) | 200mm | ||
| X-axis width | Near side | 180mm | ||
| Reference distance | 220mm | |||
| Distal end | 280mm | |||
| Light source | Light source wavelength | 405nm blue light | ||
| Laser class | 2M | |||
| Laser output power | 10mW | |||
| Repetition accuracy | Z-axis (height) | 5μm | ||
| X-axis (width) | 20μm | |||
| linearity | Z-axis (height) | ±0.05% F.S. | ||
| Contour data interval | X-axis (width) | 90μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 17 | |||
| Scanning speed (Hz) | 2500 ~ 8000 | |||
| Dimension (mm) | 189.5×93×48 | |||
| Weight (g) | 840 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential coders are supported | |||
| Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs（10-500Hz）符合 IEC 68-2-6 Fc标准标准 | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
