Automotive Wheels Inspection with SinceVision 3D Laser Profiler
Industry pain points and demands
Visual inspection of automotive wheels is critical for identifying defects, maintaining safety standards, and ensuring the overall quality of the final product. Manual or conventional methods may miss subtle irregularities, compromising wheel performance and safety.
The SinceVision SR5320 3D Laser Profiler is designed to tackle these challenges with precision and efficiency. Featuring a 450nm blue light source and ultra-fast scanning speed of up to 67K/s, it covers an X-axis width of 440mm-640mm for comprehensive wheel inspection.
Physical Picture or Imaging Effect Picture

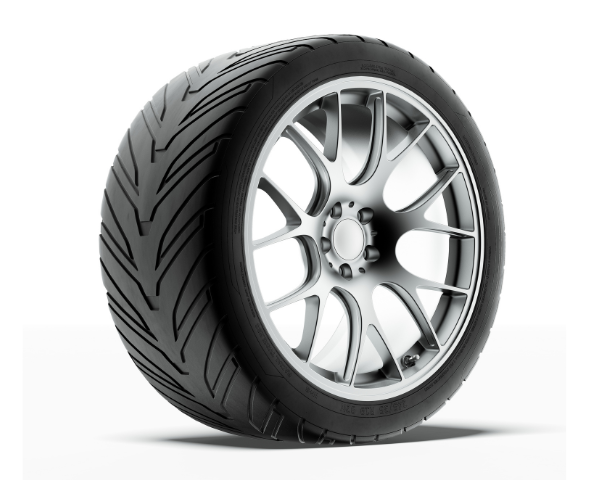

Physical picture

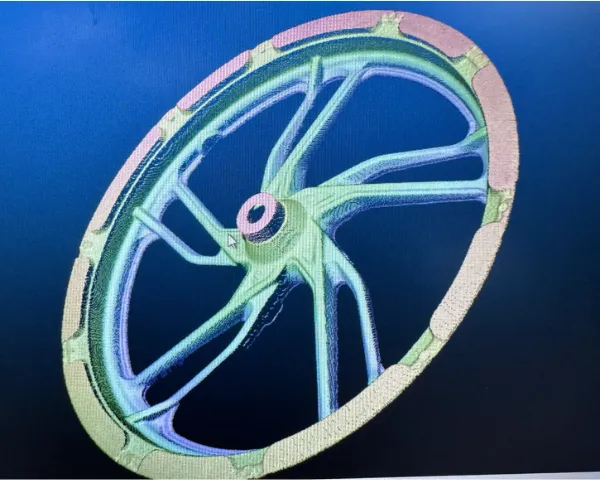

Imaging effect picture
SinceVision Solution: SR5320 3D Laser Profiler
01Real-Time Insights: Enables instant defect detection for timely production adjustments.
02Ultra-Precise Detection: Captures intricate surface details with unmatched accuracy.
03High-Speed Performance: Operates at 67K/s, optimizing inspection speed without sacrificing accuracy.
Camera Selection
| Model number | SR5230 | |||
| Reference distance (CD) | 500mm | |||
| Measuring range | Z-axis height (FS) | 510mm | ||
| X-axis width | Near side | 360mm | ||
| Reference distance | 470mm | |||
| Remote side | 640mm | |||
| Light source | Light source wavelength | 450nm blue light | ||
| Laser class | 3R | |||
| Laser output power | 50mW | |||
| Repetition accuracy | Z-axis (height) | 7.5μm | ||
| X-axis (width) | 50μm | |||
| linearity | Z-axis (height) | ±0.02% of F.S. | ||
| Contour data interval | X-axis (width) | 200μm | ||
| X-axis contour points | 3200 | |||
| Reflection Angle (°) | 35 | |||
| Scanning speed (Hz) | 2500 ~ 67000 | |||
| Dimension (mm) | 460×92.5×62 | |||
| Weight (g) | 1900 | |||
| Temperature characteristic | 0.02% F.S./℃ | |||
| Encoder input | Single-ended, differential encoder is supported | |||
| Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
| Operation Temperature | 0～50℃ | |||
| Storage Temperature | -20～70℃ | |||
| Working Humidity | 35% to 85% without condensation | |||
| ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
| EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
| Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
| Vibration | 10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard | |||
| degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard | |||
