Food Counting with SinceVision 3D Laser Profiler
Industry pain points and demands
Accurate food counting is vital for ensuring correct portioning, packaging efficiency, and compliance with industry standards. Traditional counting methods often struggle to handle irregular shapes, varying sizes, and high-speed production, leading to inconsistencies and waste in the food and packaging industry.

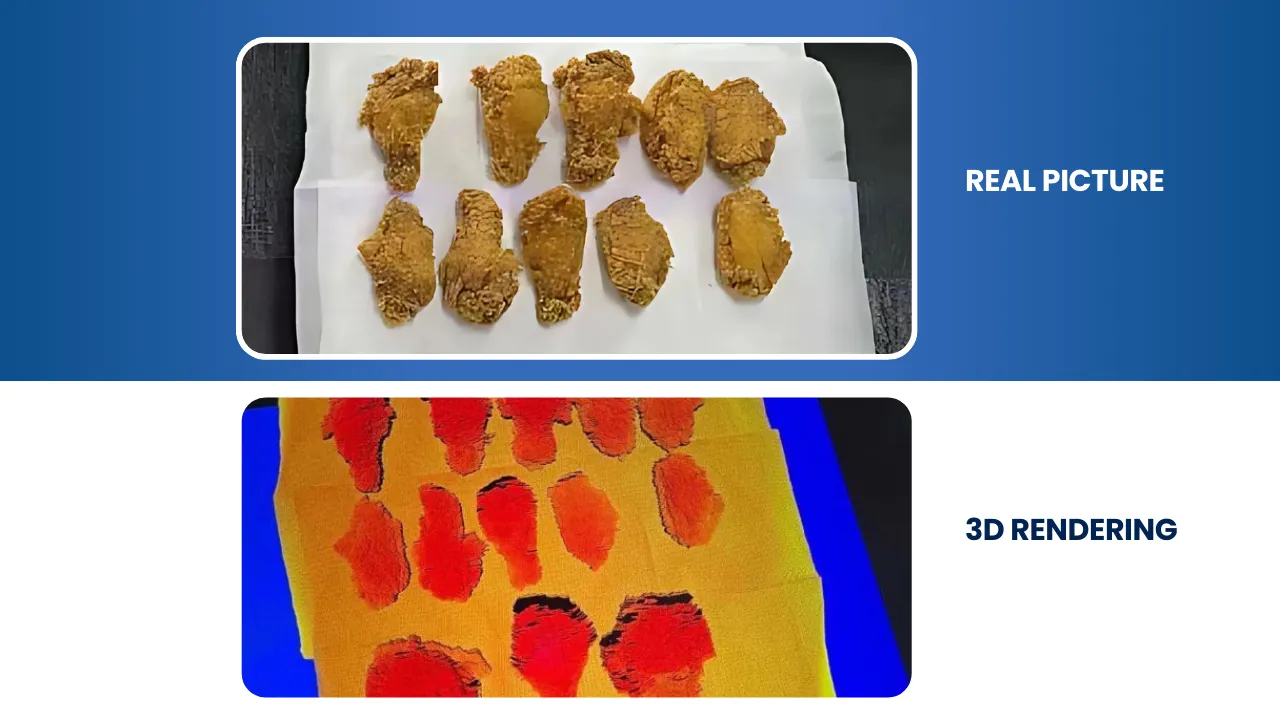

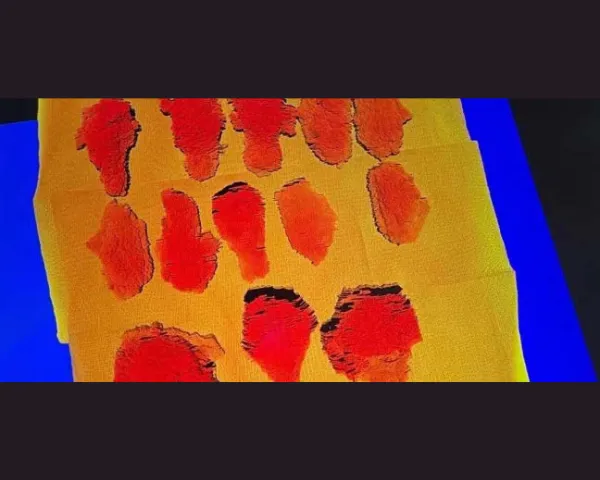

Physical Picture or Imaging Effect Picture
SinceVision Solution: SR7900 3D Laser Profiler
01Adaptable Matrix Design: Accommodates a wide variety of food shapes, sizes, and configurations to meet diverse application requirements.
02High-Speed Detection: Processes multiple items in real-time, maintaining efficiency in high-speed production lines.
03Non-Contact Inspection: Ensures hygienic counting without risk of contamination or product damage.
Camera Selection
Model number | SR7900 | |||
Reference distance (CD) | 900mm | |||
Measuring range | Z-axis height (FS) | 500mm | ||
X-axis width | Near side | 359mm | ||
Reference distance | 489mm | |||
Remote side | 576mm | |||
Light source | Light source wavelength | 450nm blue light | ||
Laser class | 3R | |||
Laser output power | 50mW | |||
Repetition accuracy | Z-axis (height) | 12μm | ||
X-axis (width) | 40μm | |||
linearity | Z-axis (height) | ±0.05% F.S. | ||
Contour data interval | X-axis (width) | 180μm | ||
X-axis contour points | 3200 | |||
Reflection Angle (°) | 13 | |||
Scanning speed (Hz) | 2500 ~ 8000 | |||
Dimension (mm) | 275.5×98.5×59 | |||
Weight (g) | 1300 | |||
Temperature characteristic | 0.02% F.S./℃ | |||
Encoder input | Single-ended, differential coders are supported | |||
Input/output | One 100Base-TX/1000Base-T Ethernet interface | |||
Operation Temperature | 0~50℃ | |||
Storage Temperature | -20~70℃ | |||
Working Humidity | 35% to 85% without condensation | |||
ESD Protection | Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards | |||
EFT protection | Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards | |||
Impact | 50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard | |||
Vibration | 10Gs(10-500Hz)符合 IEC 68-2-6 Fc标准标准 | |||
degrees of protection provided by enclosure | IP67, in accordance with IEC 60529 standard |
