SH6-202
Product Introduction

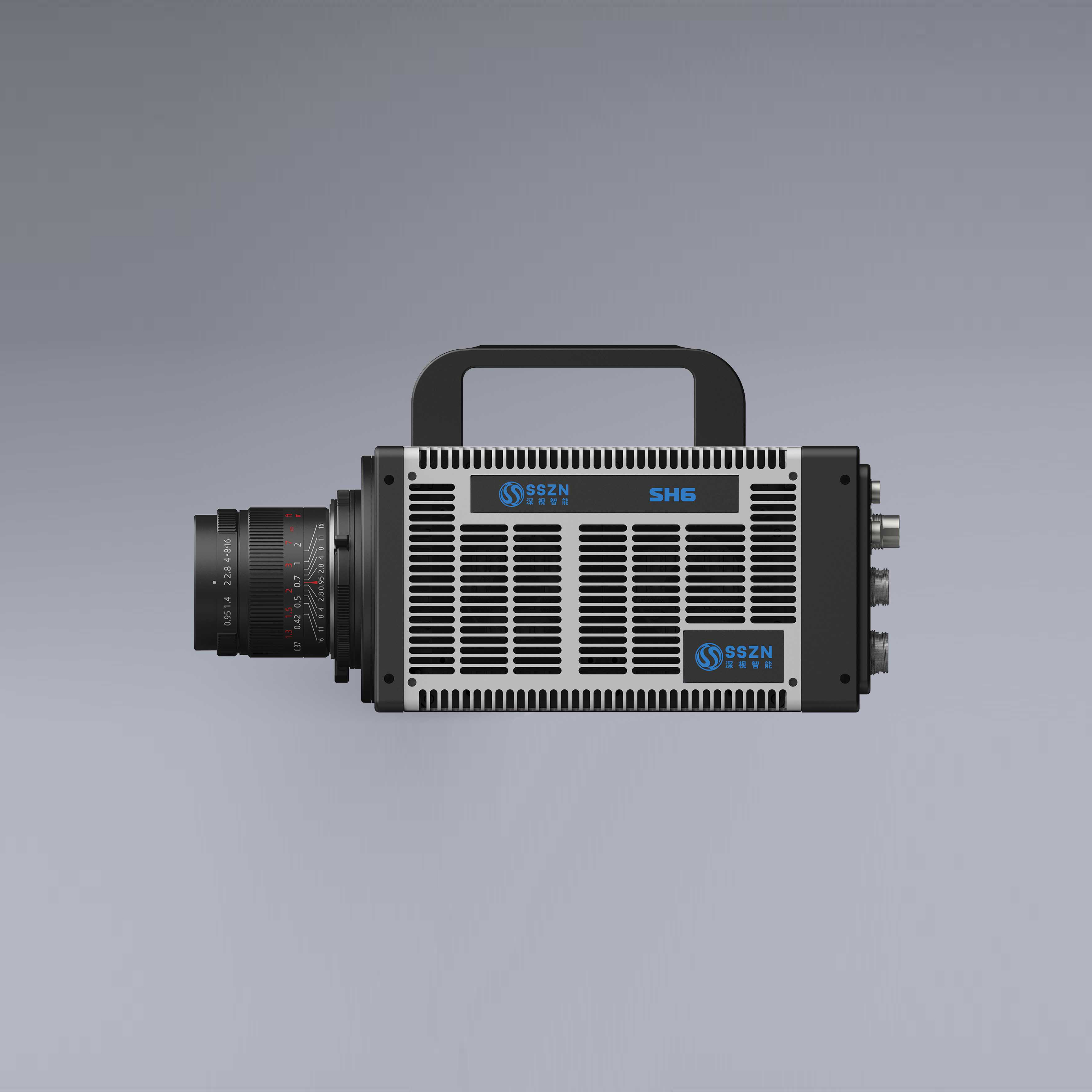

SH6-202 is a full-featured high-speed camera created by Deepvision Intelligence for high-end scientific research, national defense, aerospace, high-speed industry and other fields. It adopts a special custom sensor, unique circuit design to make it have 40Gbps effective bandwidth and excellent imaging quality. At the same time, it has a wealth of extensible interfaces, so that high-speed imaging applications have more possibilities.
Download related documents
Contact Now
price
Technical specifications
| performance | |||||||
| resolution | Frame rate | Record time (memory) | Record time (hard disk) | ||||
| 40GB | 80GB | 160GB | 4TB | 12TB | 20TB | ||
| 2048 x 1024 | 2000FPS | 10.2 (s) | 20.4 (s) | 40.8 (s) | 34 (min) | 102 (min) | 170 (min) |
| 2048 x 768 | 2500FPS | 10.9 (s) | 21.8 (s) | 43.6 (s) | 36 (min) | 108 (min) | 180 (min) |
| 2048 x 512 | 3000FPS | 13.6 (s) | 27.2 (s) | 54.4 (s) | 45 (min) | 135 (min) | 225 (min) |
| 2048 x 256 | 4500FPS | 18.2 (s) | 36.4 (s) | 72.8 (s) | 60 (min) | 180 (min) | 300 (min) |
| 2048×128 | 5600FPS | 29 (s) | 58 (s) | 116 (s) | 96 (min) | 288 (min) | 480 (min) |
| 2048×64 | 12000FPS | 27.2 (s) | 54.4 (s) | 108.8 (s) | 90 (min) | 270 (min) | 450 (min) |
| 2048×32 | 14000FPS | 46.8 (s) | 93.6 (s) | 187.2 (s) | 156 (min) | 468 (min) | 780 (min) |
| specification | |||
| Model number | TYPE | SH6-202 | |
| Maximum resolution | Full Resolution | 2048 x 1024 | |
| Full shot speed | Full Frame Rate | 2000fps | |
| Maximum shooting speed | Maximum Frame Rate | 14000fp | |
| Minimum exposure time | Minimum Exposure Time | 1 mu s | |
| Pixel size | Pixel Size | 9 microns | |
| Standard memory | Standard RAM | 40 GB, 80 GB, and 160 GB are optional | |
| Extended memory | Extended Memor | 4T, 12T, and 20T are optional | |
| Dynamic range | Dynamic Range | 60dB | |
| Analog Gain | Analog Gain | ×2、×4、×8 | |
| Bit Resolution | Bit Resolution | 8bit/10bit/12bit | |
| Shutte Mode | Shutte Mode | Global shutter | |
| Color | Color | Monochrome (M)/Colorful (C) | |
| ROI | ROI | Support | |
| Lens Mount | Lens Mount | E interface, can be connected to F interface, C interface, EF interface | |
| Data Interface | Data Interface | 10 Gigabit Ethernet, Adaptive Gigabit Ethernet | |
| Sensitivity | Sensitivity | ISO10000(M)；ISO3000(C) | |
| Fan Control | Fan Control | Supports on/off, adaptive speed based on temperature | |
| Operating Temperature/Humidity | Operating Temperature/Humidity | Standard -10~50 ℃, below 95% (without condensation), customizable -35~65 ℃ wide temperature version | |
| Video Signal Output | Video Signal Output | SDI, Ethernet | |
| Recording Mode | Recording Mode | Start, End, Center, Random, Manual | |
| Trigger Mode | Trigger Mode | Manual, IO, Image | |

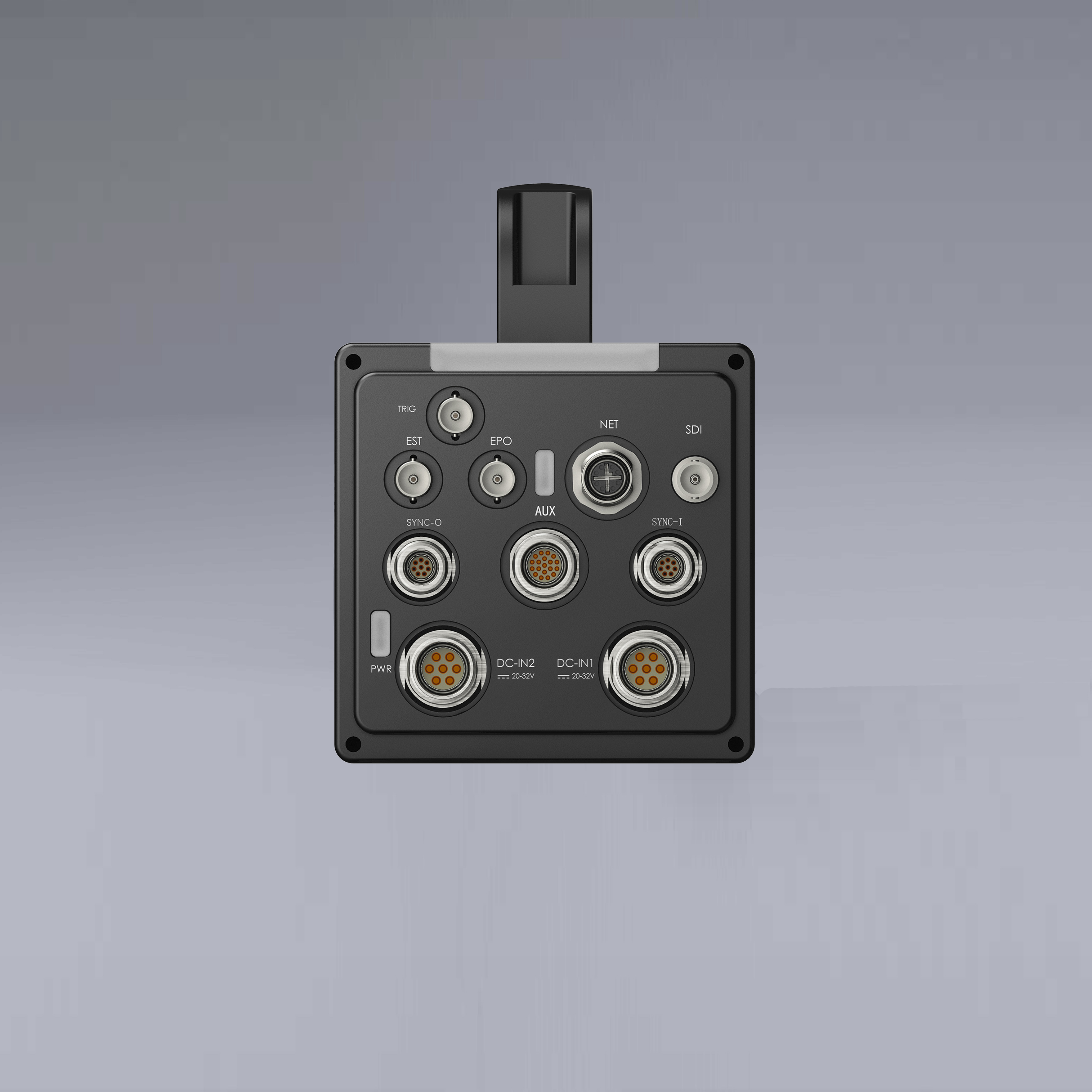

| External Signal | External Signal | Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal Output: trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal | |
| Power Supply | Power Supply | Dual power supply, DC24V | |
| Dimensions (excluding lens) | Dimensions (excluding lens) | 217D × 110W × 110H, excluding raised parts | |
| Weight | Weight | 3.8kg | |
| Power Consumption | Power Consumption | 55W | |
| Standard Accessories | Standard Accessories | Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one | |
